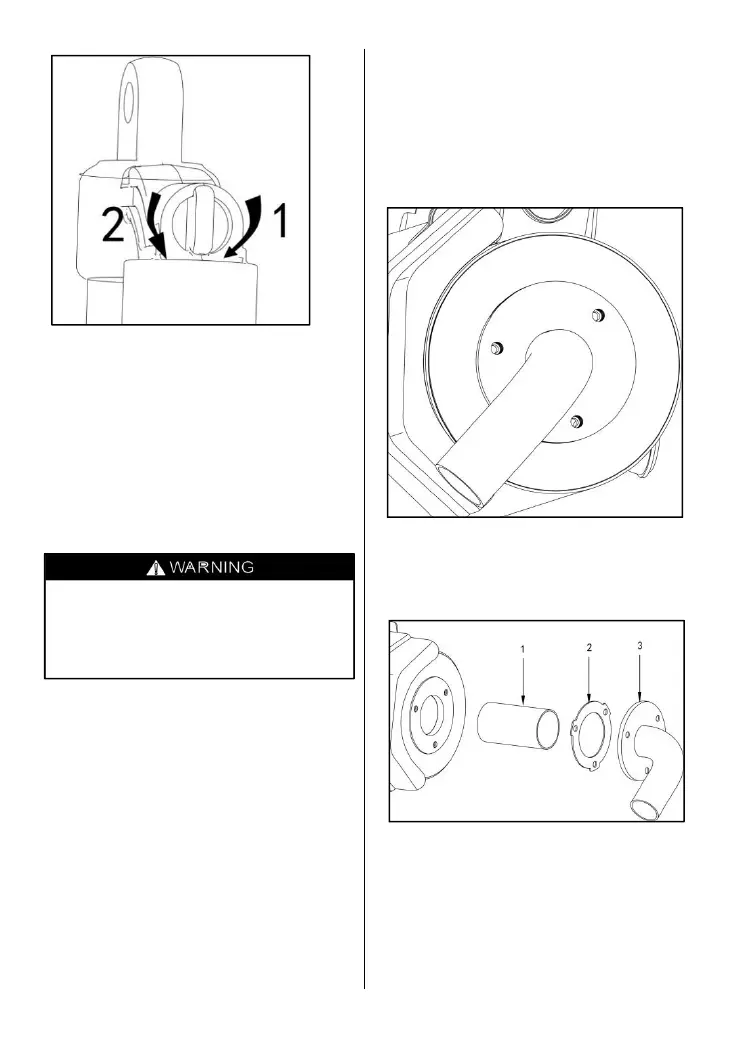

1.Increases damping(stiffer)
2.Decreases damping (softer)
Turn adjuster clockwise to increase
shock damping action (stiffer).
Turn adjuster counterclockwise to
decrease shock damping action
(softer).
damping action (stiffer).Turn adjuster
counterclockwise to decrease shock
damping action (softer).
Muffler Spark Arrester Cleaning
and Inspection
CAUTION: Let exhaust system cool
down before proceeding with leaning
and inspection.
TYPICAL- REMOVE TAIL PIPE
Remove exhaust tail pipe, gasket
(discard) and spark arrester.
TYPICAL
1.Spark arrester
2.Sasket
3.Exhaust tail pipe
