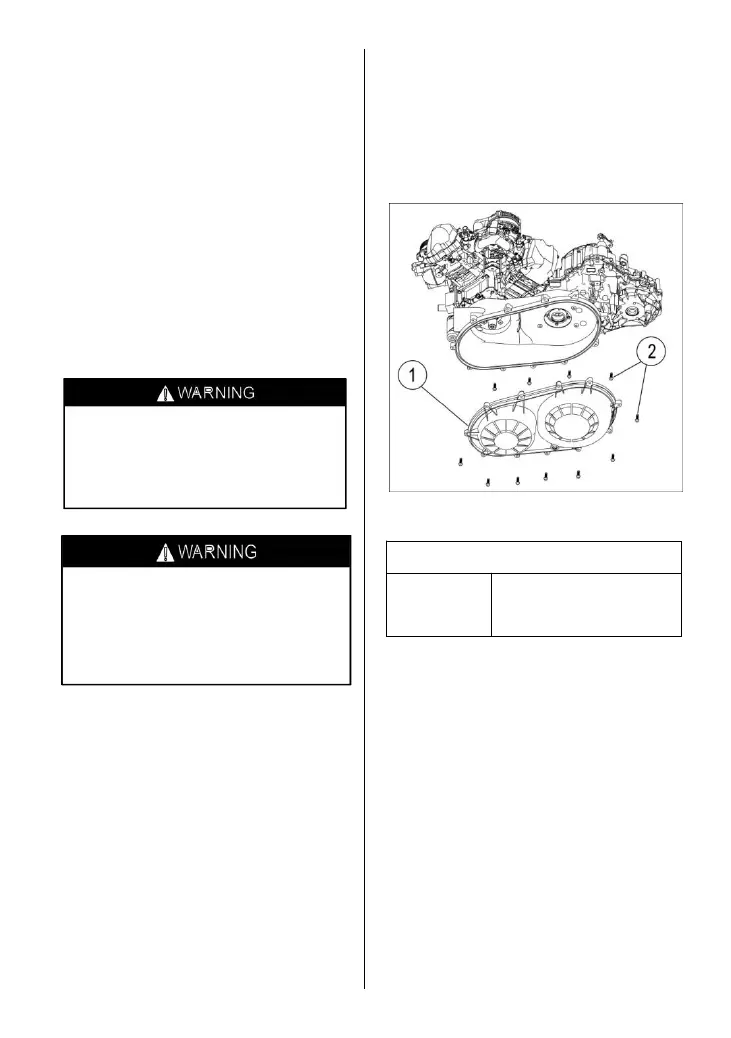

CVT Cover
NOTE: For a better understanding,
some illustrations are taken with
engine out of vehicle. To perform the
following instructions, it is not
necessary to remove engine.
This CVT is lubrication free. Never
lubricate any components except
drive pulley bearing.
Never touch CVT while engine is
running. Never drive vehicle when
CVT cover is removed.
Engine must be cool before
cover is removed. Always wear
protective gloves when removing
cover.
Place the vehicle on a level surface.
Selector PARK position.
CVT Cover Access
Tilt cargo box.
CVT Cover Removal
Remove the eleven CVT cover
screws. Use tool included in tool kit.
NOTE: Remove the center top screw
last to support the cover during
NOTICE: In case of a drive belt
failure, the CVT, cover and air outlet
must be cleaned.
Lights
Poor lighting can result in reduced
visibility when driving. Headlight and
taillight lenses become dirty during
normal operation. Clean lights
frequently and replace burned out
lamps promptly. Do not operate this
