Engine Air Filter Removal
Open cargo box.
Unlatch air filter cover and remove
air filter.
RH SIDE OF VEHICLE, UNDER
CARGO BOX

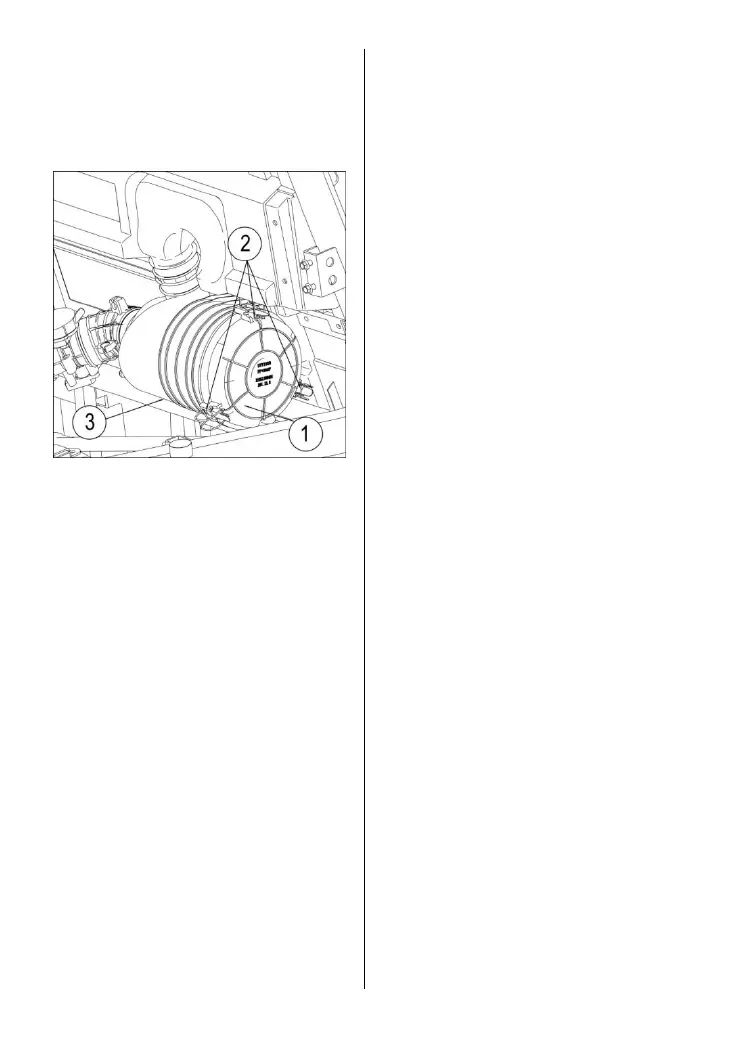

1. Air filter cover
2. Latches
3. Duck bill valve
The filter fits tightly over the outlet
tube and there will be some initial
resistance.
Gently move the end of the filter
back and forth to break the seal,
then rotate while pulling straight out.
Avoid knocking the filter against the
housing.
Engine Air Filter Cleaning
Inspect the filter for any signs of
leaks. A streak of dust on the clean
side of the filter is a telltale sign.
Replace filter if there is any damages.
Eliminate any source of air leaks
before installing a new filter.
Clean engine air filter by tapping out
heavy dust from paper element, this
will allow dirt and dust to get out of
the paper filter.
NOTICE: It is not recommended to
Blow compressed air on the paper
element; this could damage the
paper fibers and reduce its filtration
ability when used in dusty
environments. If engine air filter is
too dirty and cannot be cleaned
following the recommended
procedure, it should be replaced.
Use a clean damp cloth to wipe both
the filter sealing surface and the
inside of the outlet tube. Ensure that
the outlet tube sealing area is
undamaged. Inspect air filter housing
for cleanliness.
Duckbill Valve Cleaning
Visually check and physically
squeeze the duckbill valve. Make
sure the valve is flexible and not
inverted, damaged or plugged.
