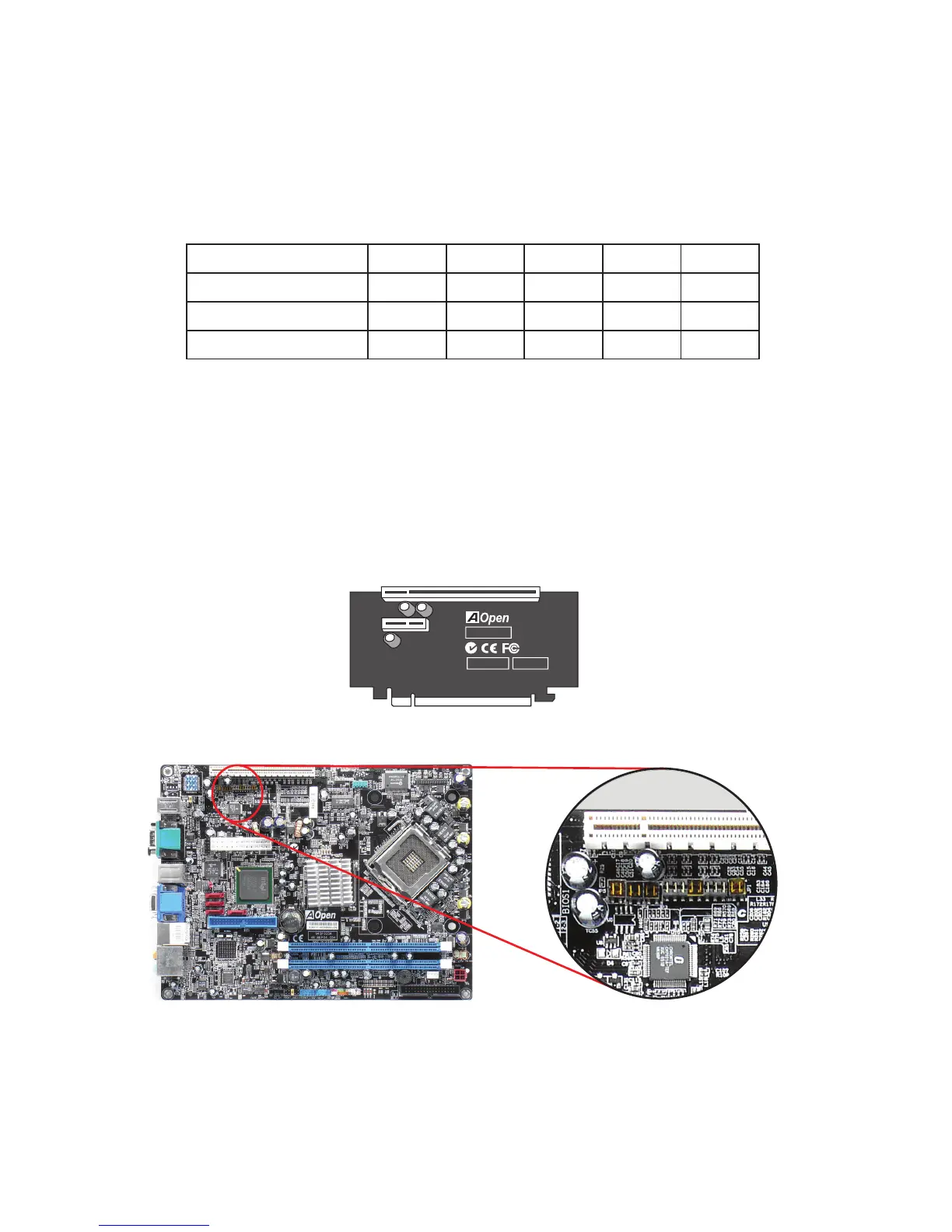

2.3 Jumper Setting
The jumper blocks are located near the white riser card slot.
When JP1, JP2, JP3, JP4, and JP5 are connected with a shorting cap, the
HD TV function is enabled. When the JP1, JP2, JP3, JP4, and JP5 are not
connected with a shorting cap, the PCI Express interface is enabled. When
JP4, JP5 are connected with a shorting cap, and JP1, JP2, and JP3 are not
connected, the Riser Card slot is enabled.
Jumper
Riser Card
Notes
JP5 JP4 JP3 JP2 JP1
HDTV ON ON ON ON ON
PCIE Card OFF OFF OFF OFF OFF
Riser Card ON ON OFF OFF OFF
