AP Diving Ltd. APV200 Inflator Maintenance Manual
Page 10 of 30

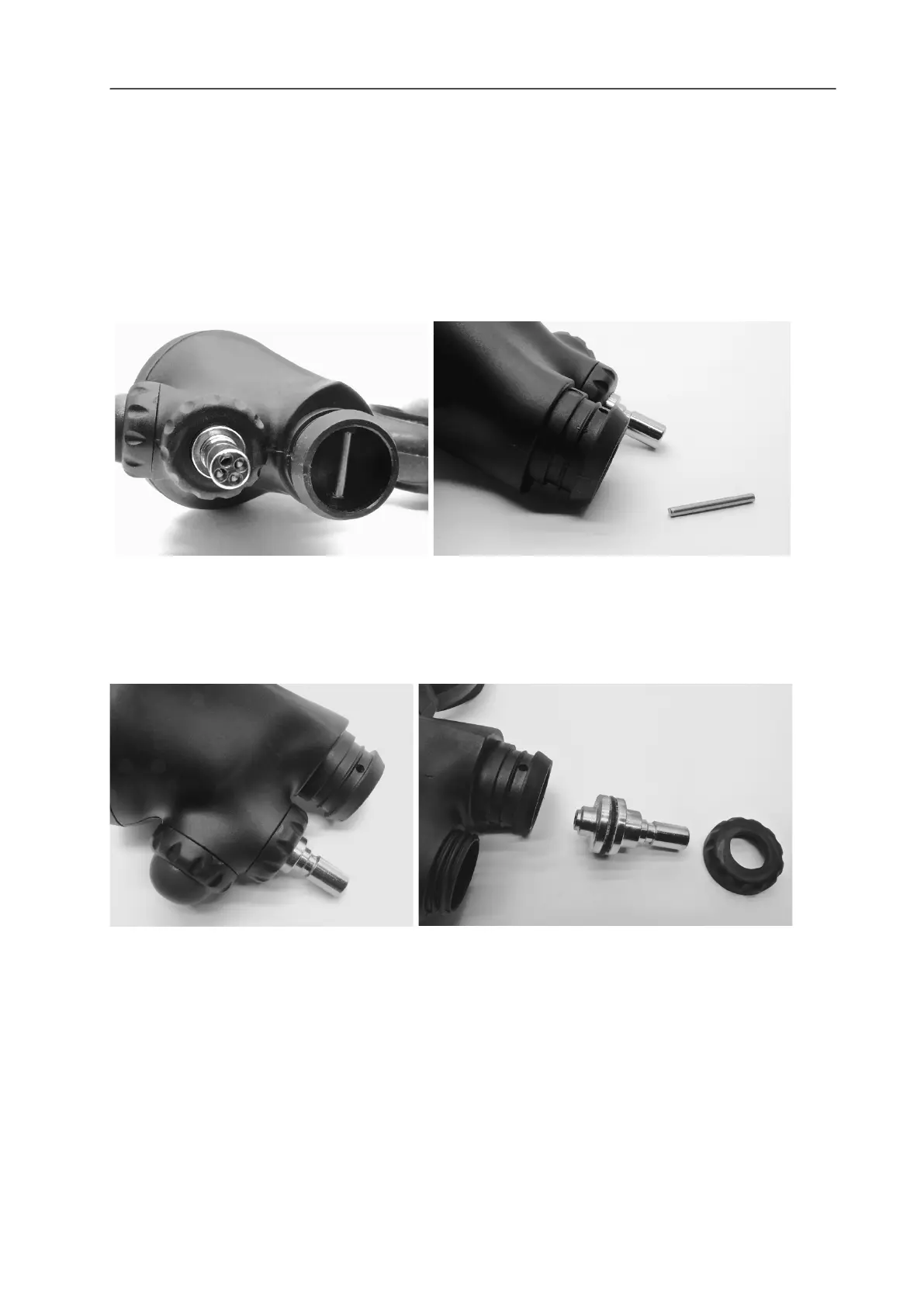

4. Disassembly Instructions
4.1 Remove steel pin (if fitted) that holds the pull cord to the dumping
elbow
- Push the steel pin out of the main body.
o The pin can be just pushed out. It is not screwed in; it is held in place by
friction.
4.2 Remove stem retainer and inlet stem from main body
- Unscrew the stem retainer counter-clockwise.
- Pull the inlet stem out straight; no need to rotate.
