AP Diving Ltd. APV200 Inflator Maintenance Manual
Page 5 of 30
2. APV200 inflator Exploded Diagram and Parts List

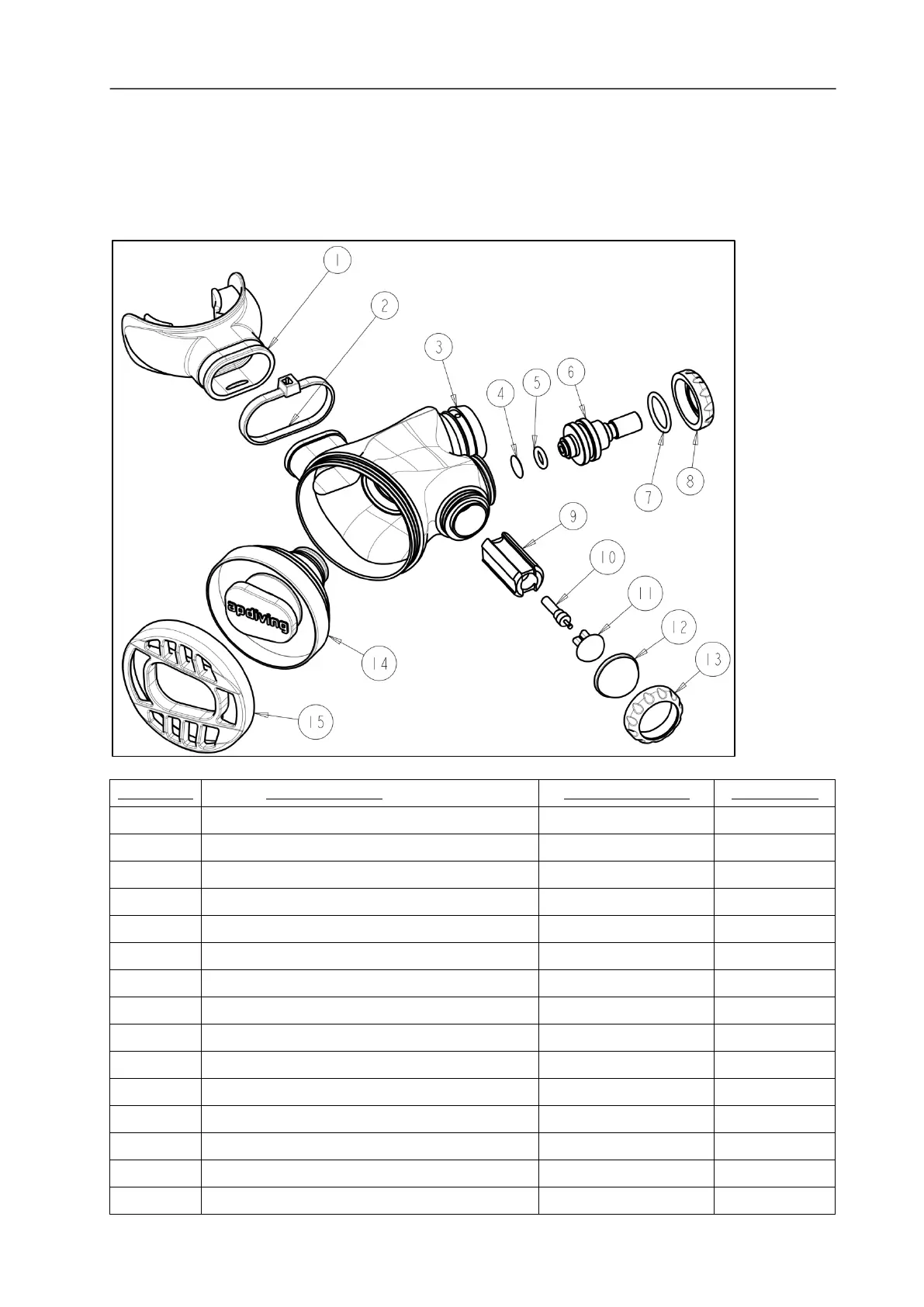

2.1 APV200 inflator Main Assembly
NUMBER
DESCRIPTION
PART NUMBER
QUANTITY
1
Mouth piece
AP-18
1
2
Ty-rap
AP-21
1
3
APV200 body
APV-200-1
1
4
Mesh filter
AP-100-41
1
5
BS010 O-ring
BS-010-N70
1
6
Inlet stem
APV-200-10
1
7
BS015 O-ring
BS-015-N70
1
8
Stem retainer
APV-100-12
1
9
Direct feed body
AP-200-12-N
1
10
Core valve
AP-100-44
1
11
Direct feed button
AP-200-14N
1
12
Button cap
AP-100-14
1
13
Cap retainer
APV-100-13
1
14
Breathing module
APV-200-3
1
15
Module cap
APV-100-10
1
