AP Diving APV200 - AP50 Inflator Hose Assembly Diagram

AP Diving Ltd. APV200 Inflator Maintenance Manual
Page 7 of 30

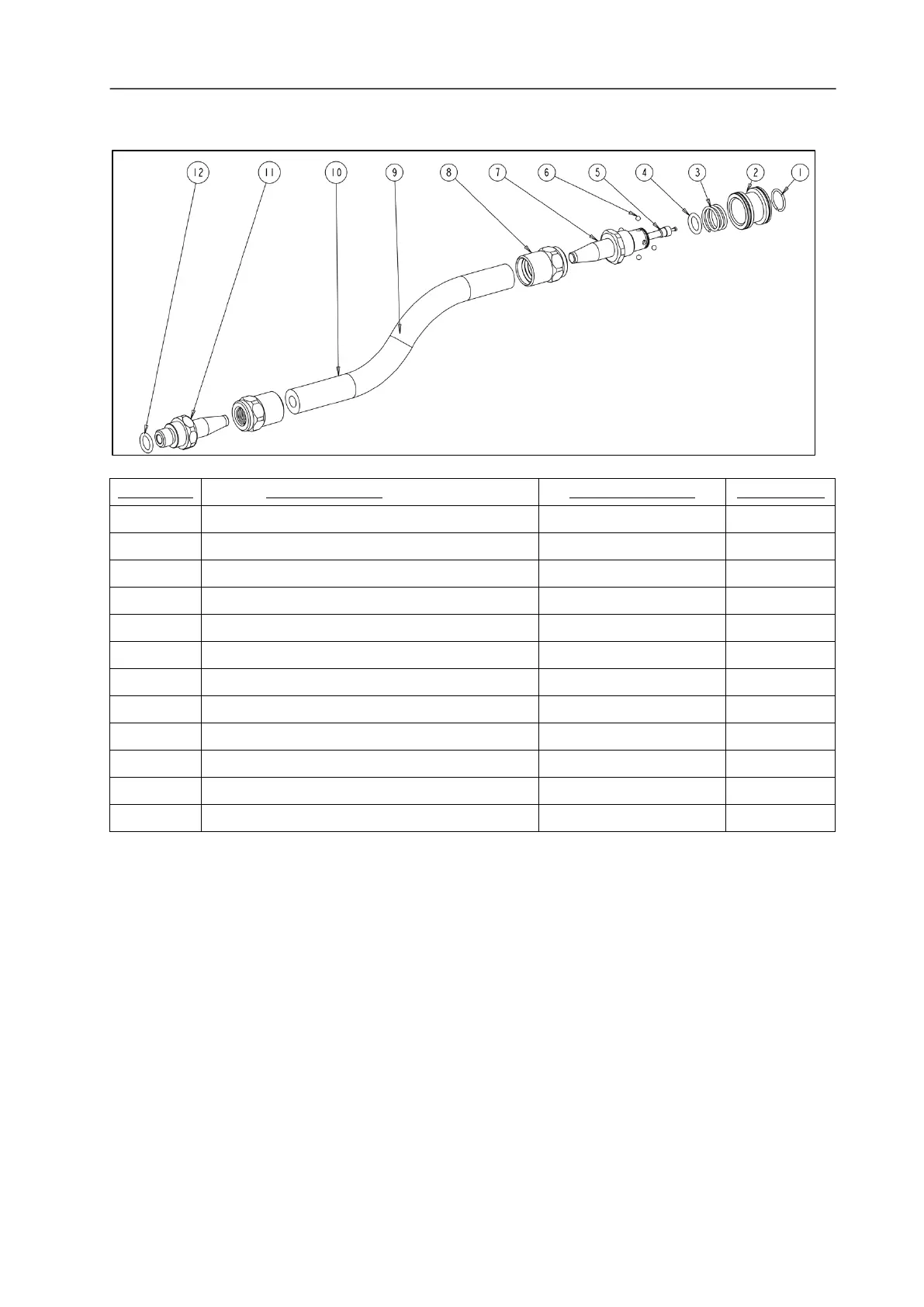

2.3 AP50 Inflator Hose Assembly
NUMBER
DESCRIPTION
PART NUMBER
QUANTITY
1
Collar circlip
AP-50-P6
1
2
Sliding collar
AP-50-P1
1
3
Spring
AP-50-P5
1
4
O-ring
BS-011-N70
1
5
Schraeder valve
AP-100-44
1
6
Ball bearing
AP-50-P7
4
7
Snap connector body
AP-50-P2
1
8
Hose collar
AP-50-P3
2
9
Oxygen heat shrink (optional)
HS-01
1
10
Hose
AP-50-C
1
11
3/8” UNF hose end
AP-50-P4
1
12
O-ring
BS-903-N70
1
