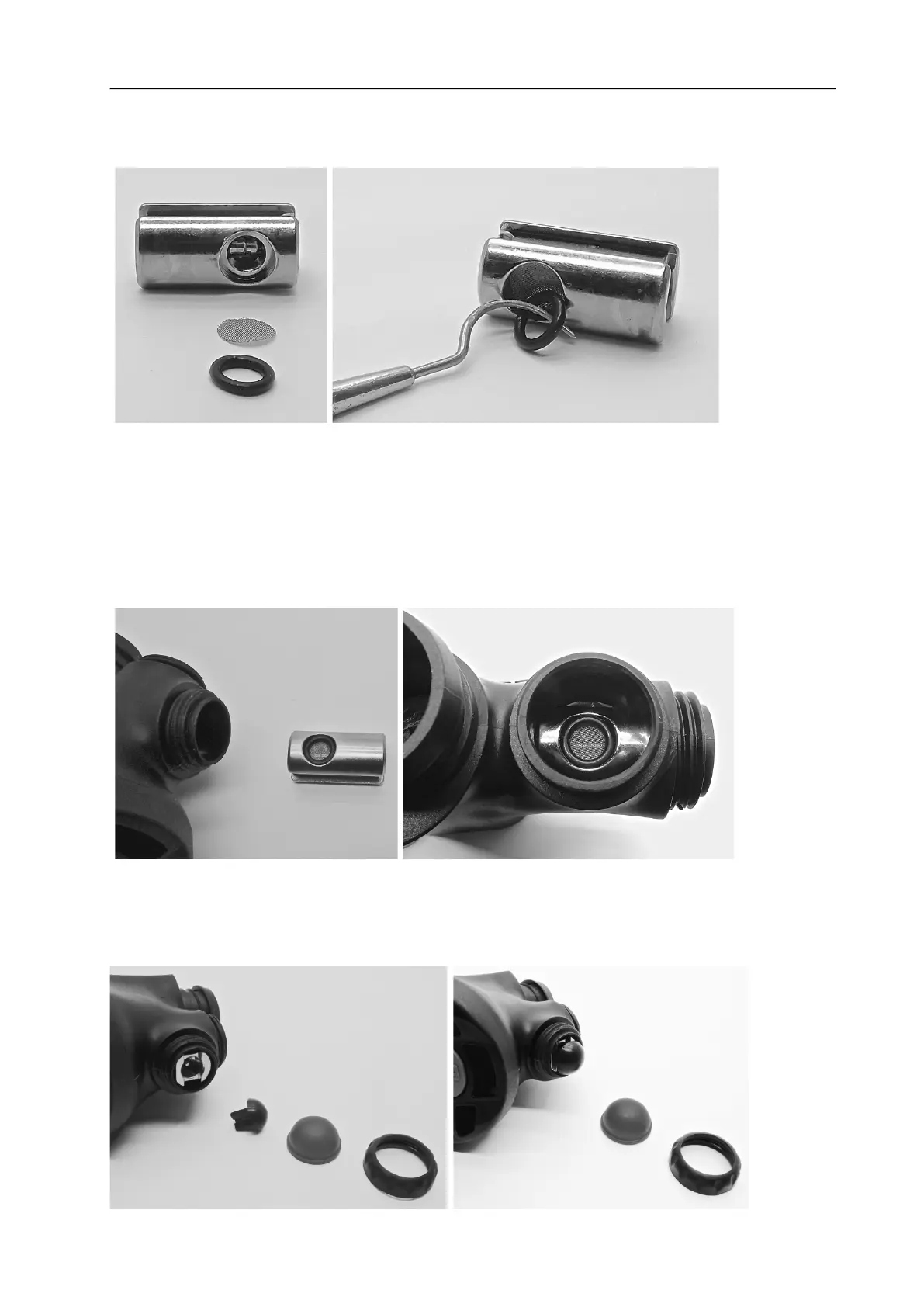

6.7 Fit new O-ring and mesh filter into direct feed body
- Both the O-ring and the mesh filter need to be replaced during service.
6.8 Push direct feed body into main body
- Notice the grooves in the side of the direct feed body. They need to align with the
ridges inside the direct feed body hole of the main body.
- The O-ring needs to be facing up, in the direction of the direct feed button hole.
o When placed correctly, the O-ring is visible in the dead center of the direct
feed button hole.
6.9 Push direct feed button into direct feed body
- Just push it in.
