AP Diving Ltd. APV200 Inflator Maintenance Manual
Page 27 of 30

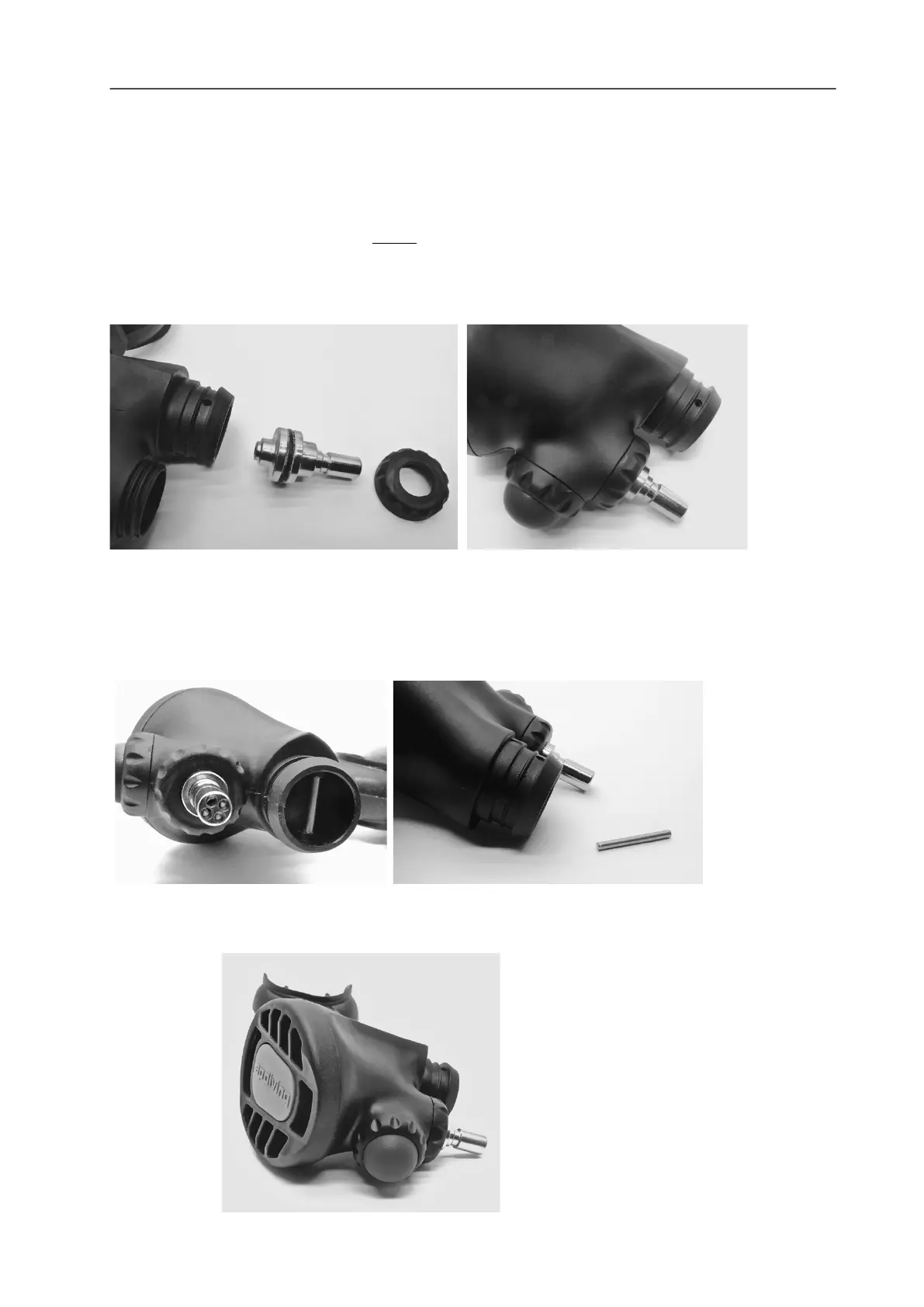

6.13 Push inlet stem into main body and screw stem retainer on
- Push the inlet stem straight in.
- Make sure the inside end of the stem (the shorter left side on the photo) hooks into
the O-ring of the direct feed body which should be visible in the centre of the hole.
- Screw the stem retainer on, clockwise.
- The retainer should be done up tight using a torque of 2 Nm, which is as tight as
possible using your fingers PLUS nipping it up with a suitable tool.
o Make sure not to damage the retainer in the process.
- If the retainer is not securely tightened there is a risk of it being lost over time, which
may result in catastrophic failure if unnoticed.
6.14 Refit steel pin (if fitted) that holds the pull cord to the dumping
elbow
o Push the steel pin into the main body. It is held in place by friction.
This completes the re-assembly of the APV200 inflator
