AP Diving Ltd. APV200 Inflator Maintenance Manual
Page 17 of 30

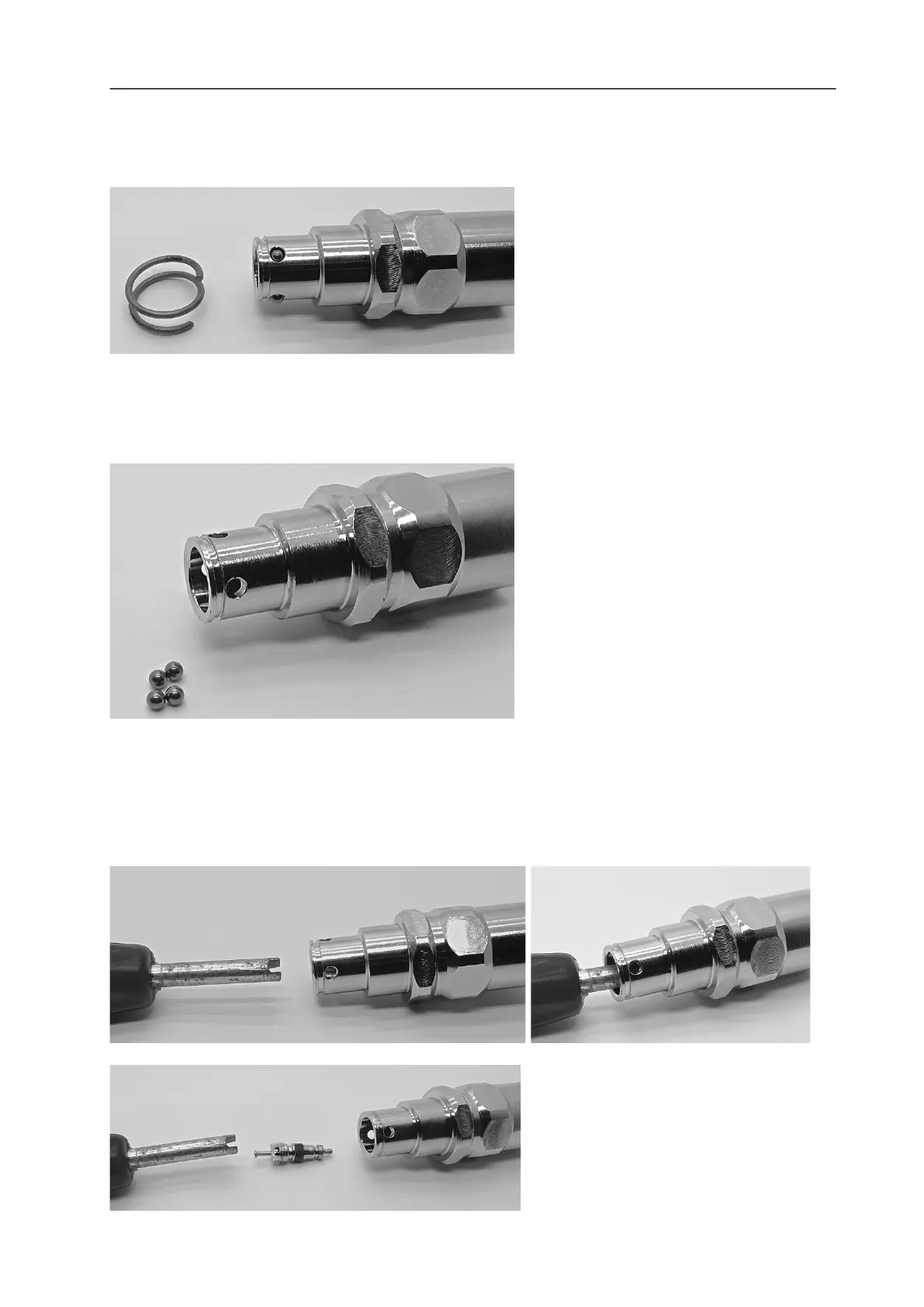

4.17 Remove spring from snap connector body
- Just pull it off.
- Make sure you do not inadvertently let the ball bearings drop out in the process.
4.18 Remove 4 ball bearings from snap connector body
- Use a small tray to catch the 4 ball bearings to avoid losing them.
4.19 Unscrew Schraeder valve from snap connector body
- Use the AP50E tool or equivalent to unscrew the Schraeder valve from the body.
- Unscrew counter-clockwise.
- This Schraeder valve needs to be replaced during service.
