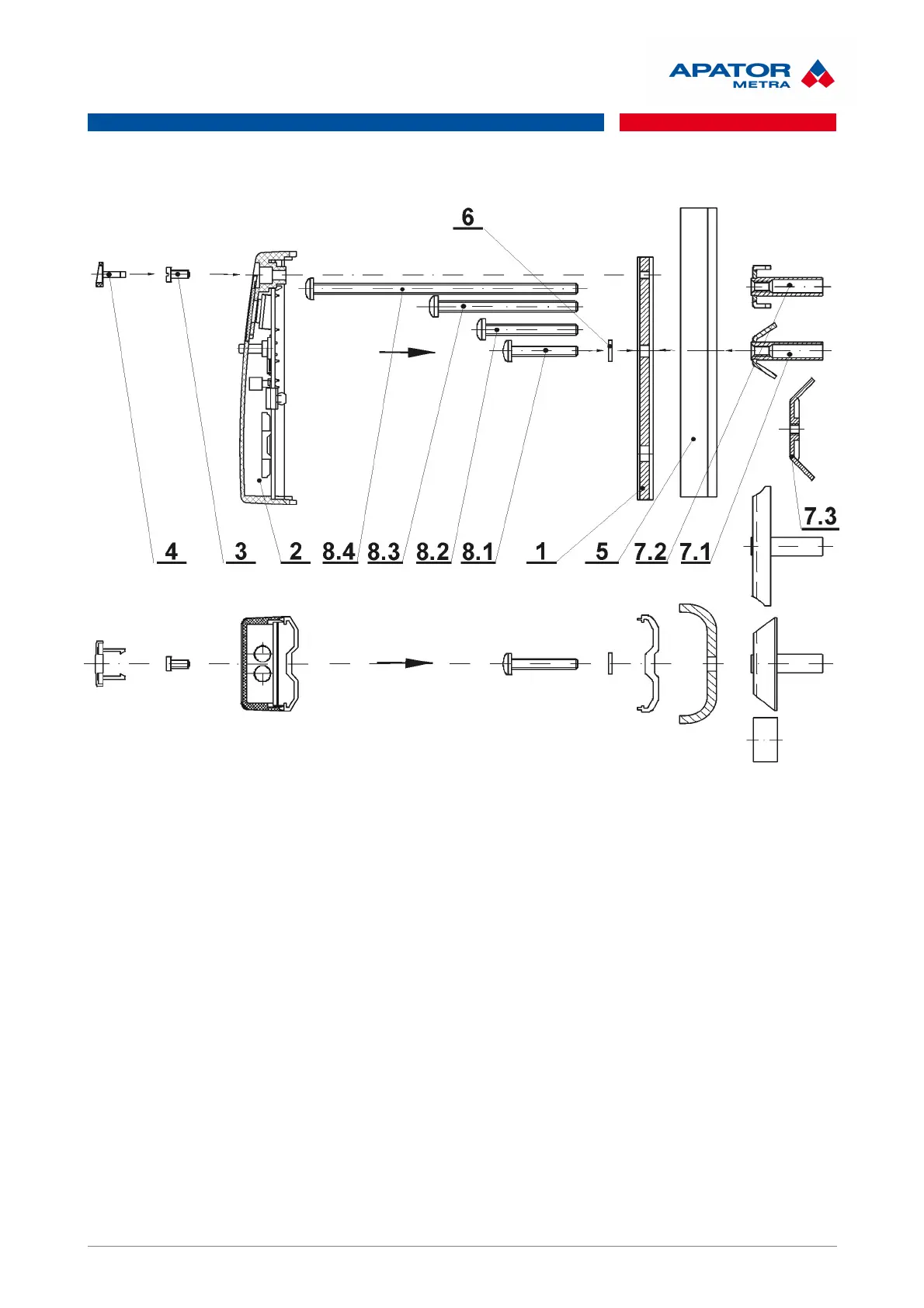

7.5. INSTALLATION ON SEGMENTED RADIATORS
1 Back plate 7.2 Clamp IV
2 Allocator body 7.3 Clamp
3 Bolt M3x8 8.1 Bolt M4x25
4 Seal 8.2 Bolt M4x35
5 Spacer 45 8.3 Bolt M4x50
6 Washer 4 ČSN 02 1746.25 8.4 Bolt M4x115
7.1 Clamp III
7.5.1. Description of installation
E-ITN 10 back plate should be installed on the radiator with clamps and bolts as follows:
• place back plate into the final location and fix with clamp and bolt through the centre hole,
• tighten to a torque 1 Nm,
• place the allocator into the back plate profile groove from bottom, align it with the base plate and
push allocator to connect it with the back plate and fix allocator with bolt M3x8 in this position,
• now secure the device with seal (marked seal should be inserted into the holes in the upper part of
the allocator) against unauthorized manipulation.
