7.9. MODEL NO. 2 – CAST IRON RADIATORS WITH FLAT VERTICAL FRONT PANEL
Verified on: KALOR 3, manufacturer: ŽDB GROUP a.s. , plant Viadrus

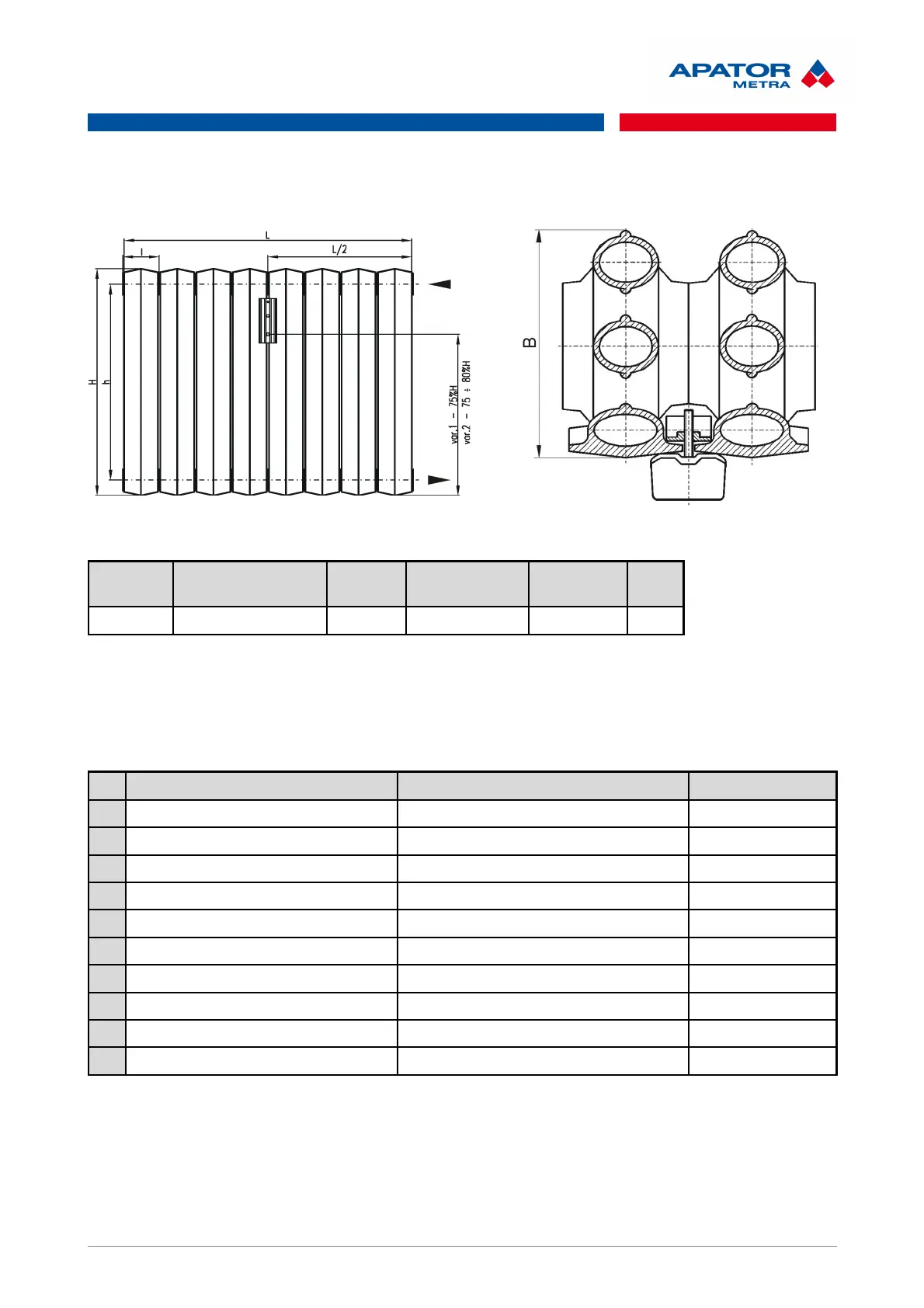

Basic dimensions of the KALOR 3 for 10 segments, data for correct allocator installation (mm):
Length - H Mounting distance
– h
Length- L Segment
length - l
Depth - B MM
580 500 600 60 110 0006
Heat output Q
N
[W] of the KALOR 3 radiator can be found in manufacturer catalogue: ŽDB GROUP a.s.,
plant VIADRUS, Bezručova 300, 735 93 BOHUMÍN
Table 12: Types of heating elements belonging to the model group 2
Type of the radiator Manufacturer of the radiator MM
1 THERMO ŽDB a.s., závod VIADRUS 0006
2
3
4
5
6
7
8
9
10
