Apator Metra E-ITN 10 Series - Model No. 5 - Steel Radiators with Distance Pad

E-ITN 10
Installation and service manual M2015/04b [EN]

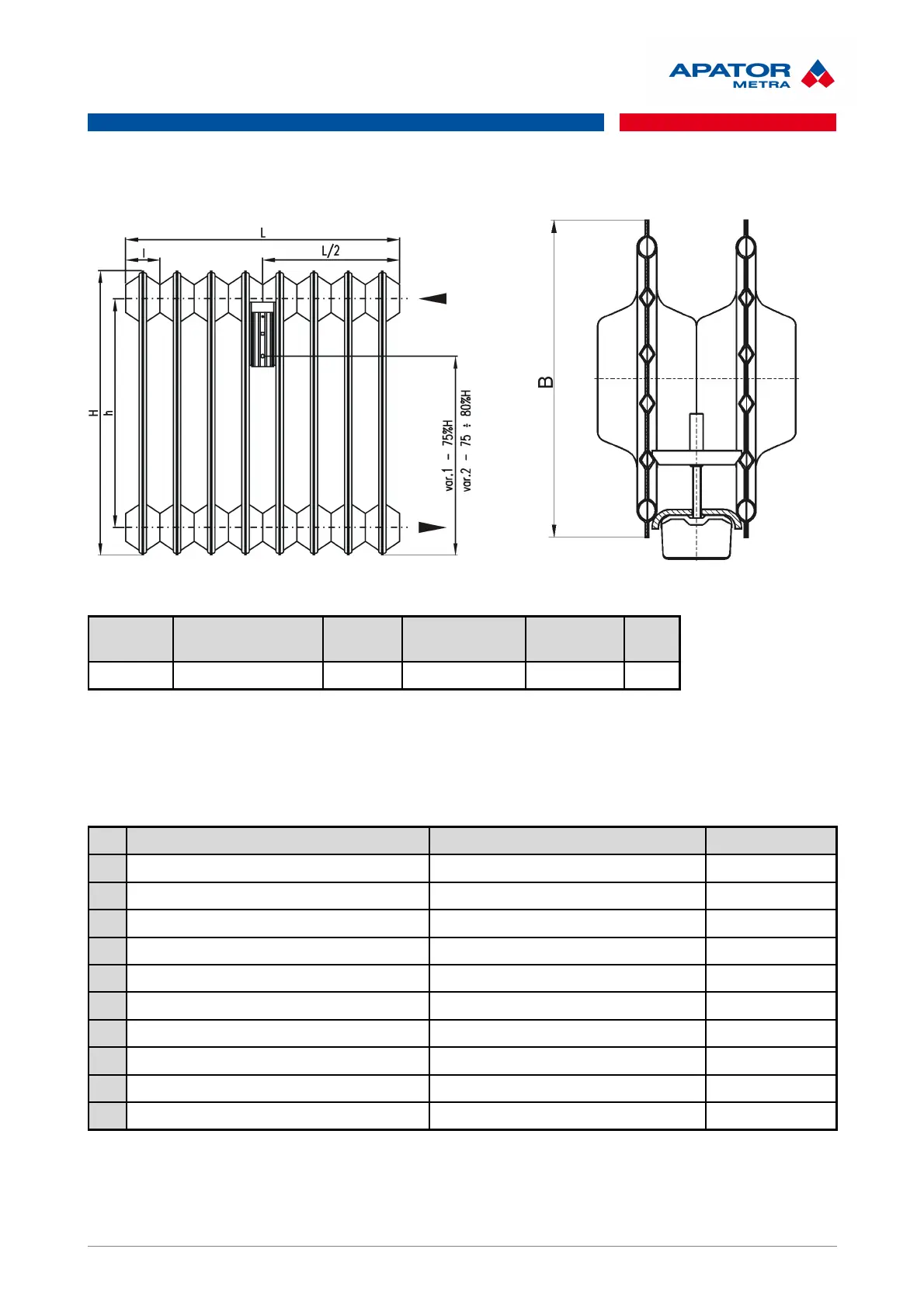

7.12. MODEL NO. 5 – STEEL RADIATORS WITH DISTANCE PAD
Verified on: Svratouch 500/160, manufacturer: Dílo - Svratouch
Basic dimensions of the SVRATOUCH 500/160 for 10 segments, data for correct allocator installation (mm):
Height- H Mounting distance
- h
Length- L Segment
length - l
Depth - B MM
600 500 500 50 160 0002
Heat output Q
N
[W] of the 500/160 radiator can be found in manufacturer catalogue: Dílo, výrobní a obchodní
družstvo, 539 42 Svratouch
Table 16: Types of heating elements belonging to the model group 5
Type of the radiator Manufacturer of the radiator MM
1 500/185 Dílo – Svratouch 0002
2
3
4
5
6
7
8
9
10
33 / 39
