E-ITN 10
Installation and service manual M2015/04b [EN]
7.18. MODEL NO.14 – TUBULAR RADIATOR WITH ALLUMINUM FRONT DESK
Verified on: U 548, manufacturer: UNIVA BLANSKO

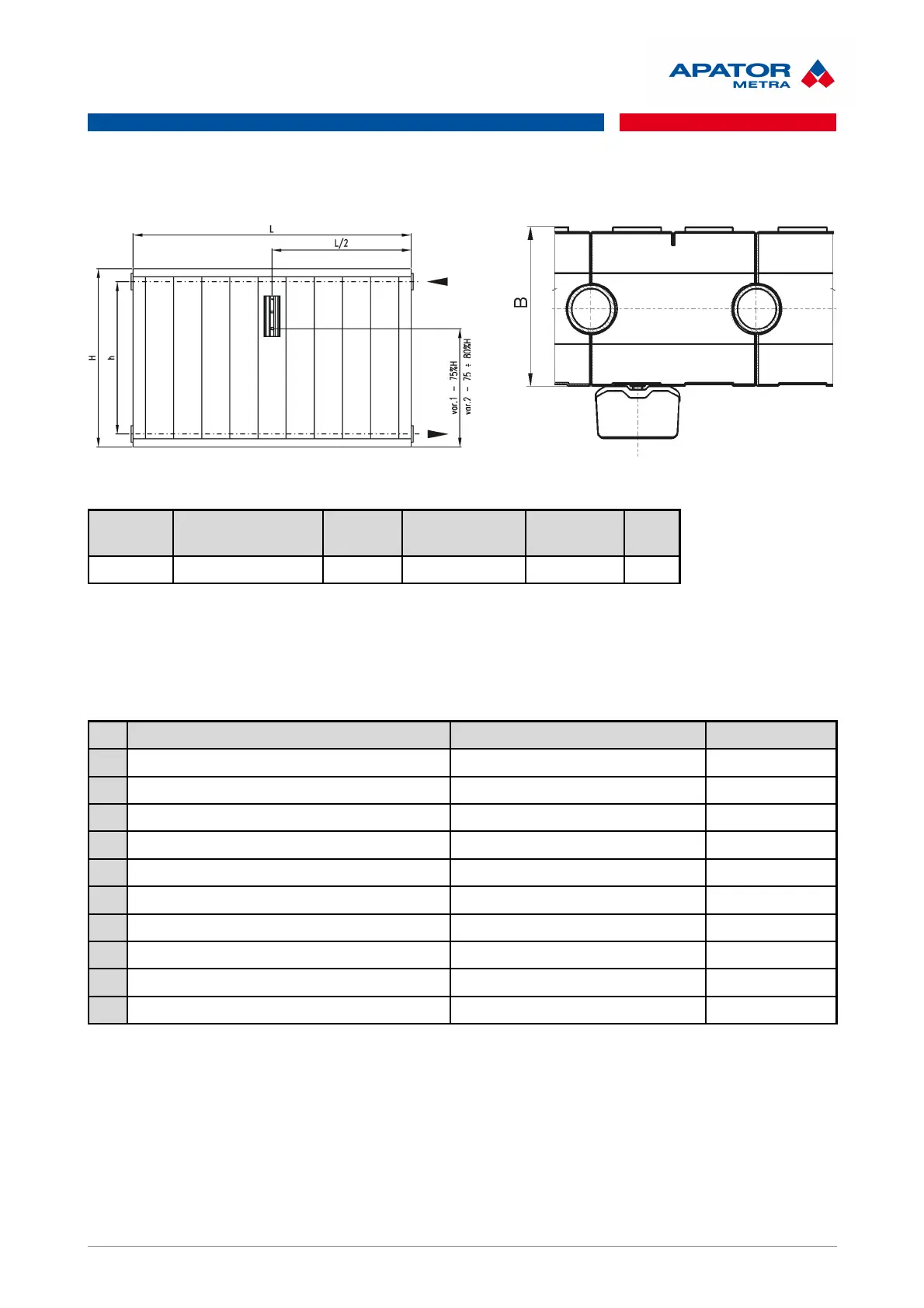

Basic dimensions of the U 548 160 for 10 segments, data for correct allocator installation (mm):
Height –
H
Mounting distance
– h
Length–L Cell length – l Depth – B MM
580 540 710 71 65 0051
Heat output Q
N
[W] of the 500/160 can be found in manufacturer catalogue: UNIVA Blansko, Poříčí 26,
678 33 Blansko
Table 19: Types of heating elements belonging to the model group 14
Type of the radiator Manufacturer of the radiator MM
1 U 548 UNIVA Blansko 0051
2
3
4
5
6
7
8
9
10
39 / 39
