E-ITN 10
Installation and service manual M2015/04b [EN]

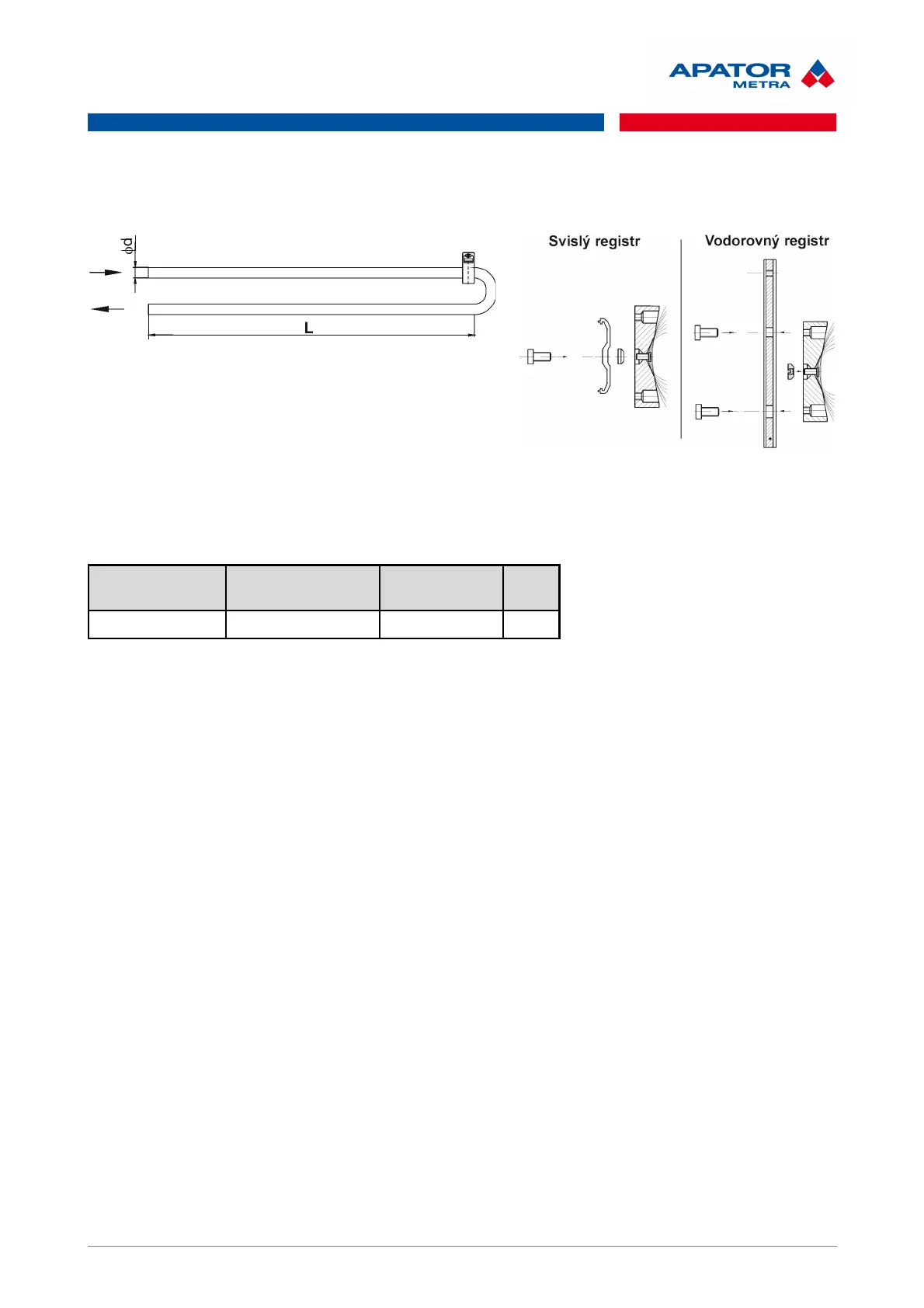

7.16. MODEL NO. 10 – RADIATORS MADE FROM SMOOTH OR RIBBED TUBES - REGISTER
Verified on: smooth register 2x1200 - ø 76/3, manufacturer: unknown
Steel registers are used only in areas with low hygiene and aesthetic requirements. Dimensions are chosen
accordingly to needs. Registers are usually made accordingly to drawings attached with project. Mounting
material can be used for pipes from ø 30 to ø 110 mm.
Basic dimensions of the horizontal radiator register ø 76 (mm):
Total length - L Tube diameter– ø d Mounting
location
MM
2x1200 76 As per diagram 0056
Illustrations and the figures are indicative only. Installation of two allocators must be recorded in installation
protocol.
For more information’s about E-ITN 10 installation refer to chapter: 7.7. Installation on horizontal and vertical
registers.
37 / 39
