E-ITN 10

Installation and service manual M2015/04b [EN]

7.10. MODEL NO. 3 – CAST IRON RADIATORS WITH DISTANCE PAD

Verified on S-130, manufacturer: Romania

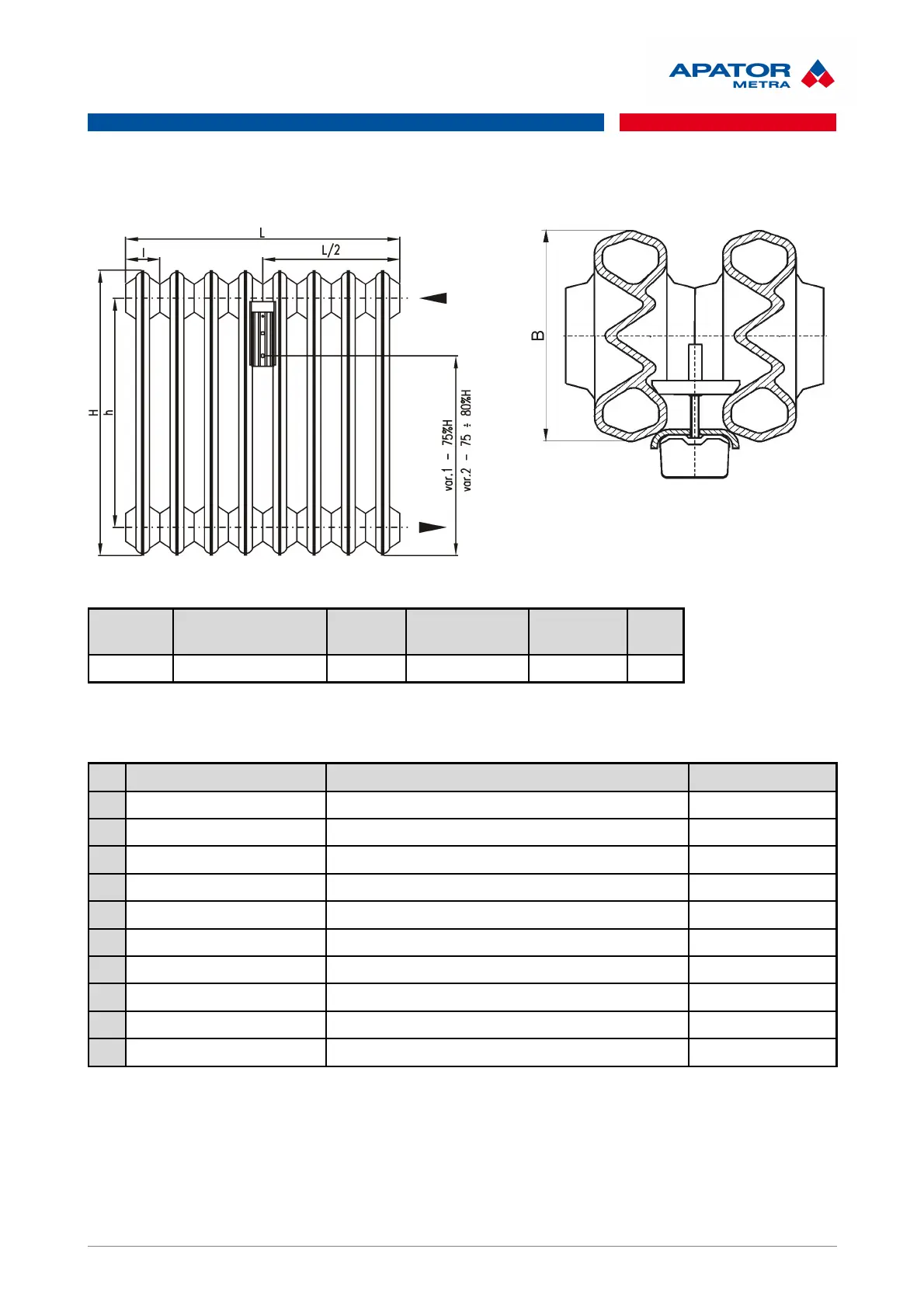

Basic dimensions of the S-130 for 10 segments, data for correct allocator installation (mm):

Height -

Mounting distance

– h

Length -

Segment

length - l

Depth - B MM

580 500 890 80 130 0002

Table 13: Types of heating elements belonging to the model group 3

Type of the radiator Manufacturer of the radiator MM

31 / 39
