Apator Metra E-ITN 10 Series User Manual

E-ITN 10
Installation and service manual M2015/04b [EN]
Vertical bare tubes:
I. Bare tube with one curve
• 1x E-ITN 10 in the beginning of the tubular element curve
• in case of register welded into the frame, place E-ITN 10 on a horizontal tube
II. Bare tube with two curves
• 2x E-ITN 10 in the beginning of the upper curve and in the end of the lower curve
• in case of register welded into the frame, place E-ITN 10 on a horizontal tube
III. Bare tube with more than two curves
• 2x E-ITN 10 in the beginning of the first curve and in the end of the (last) upper curve
• in case of register welded into the frame, place E-ITN 10 on a horizontal tube
• Two or more small tubes connected in parallel
• 1x E-ITN 10 in 75% of the total height and nearest to the centre of tubular element
Note: If register does not match with those patterns, ask manufacturer for information.
28 / 39

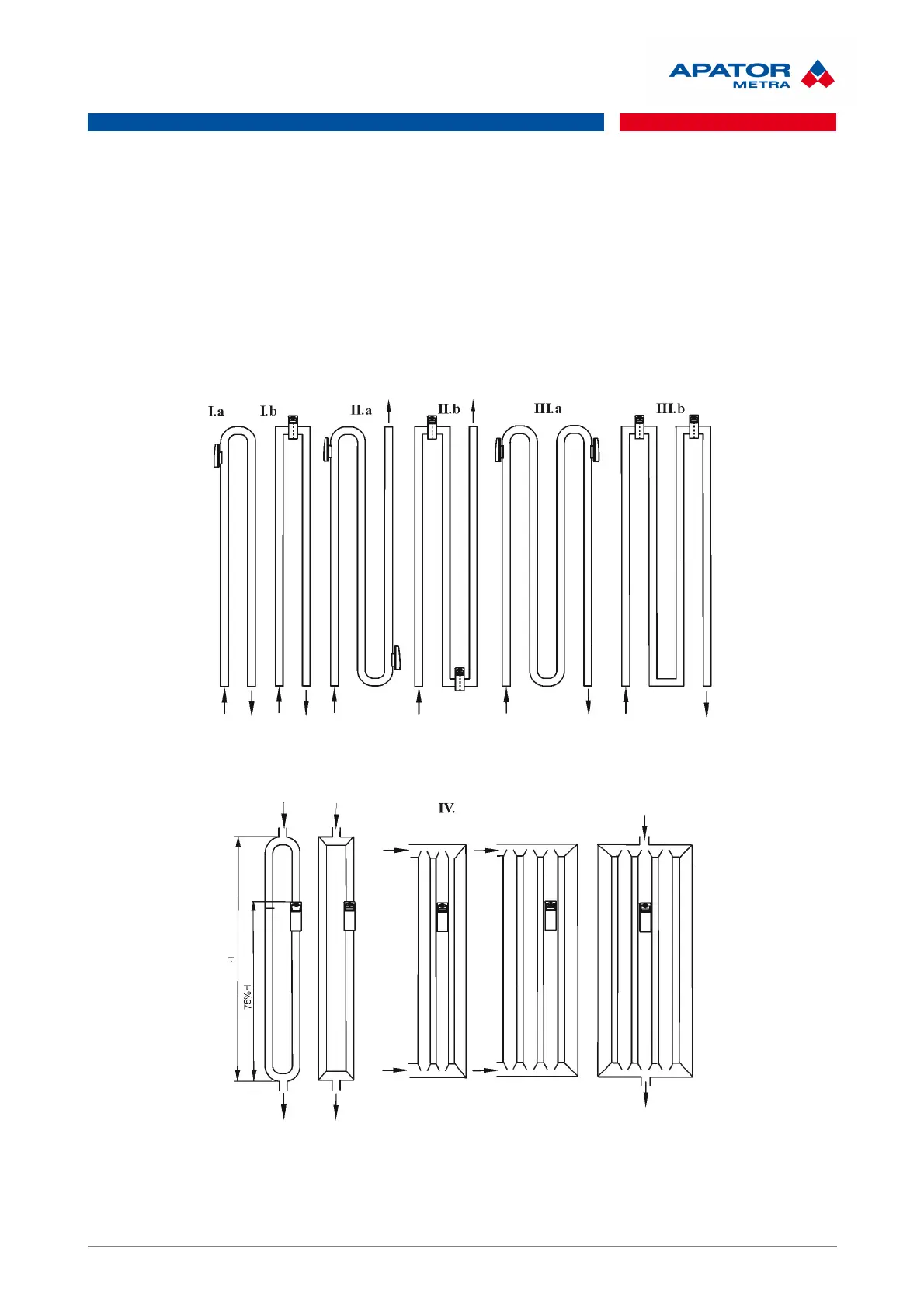

Illustration 10: E-ITN 10 location on vertical tubular radiators
Illustration 11: E-ITN 10 location on vertical tubular radiators
