3 990-1048, Revision 1 12/00
2: INSTALLATION
The UPS has a “rack and stack” design that provides two mounting options. The UPS can be
mounted in a 19-inch equipment rack or stacked on a battery pack(s) model SU24RMXLBP2U.
Hardware is provided for either option.
UNPACKING
1. Inspect the UPS upon receipt. APC designed robust packaging for your product. However, acci-
dents and damage may occur during shipment. Notify the carrier and dealer if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
2. Check the package contents. The shipping package contains the UPS, its front bezel, a mounting
kit with brackets, cleats, feet, and hardware, a rail kit containing mounting rails, installation in-
structions, and a hardware packet (necessary for rack mounting the UPS), a literature kit contain-
ing a Utility CD, three output cables, one serial cable, one RJ-45 network cable, and product
documentation.
The UPS is shipped with the battery and the front bezel disconnected. (The bezel is
packaged separately within the main box.) You must connect the battery and install
the plastic bezel during the installation procedure.
POSITIONING THE UPS
Place the rack and the UPS where they will be used for either stacking or rack mounting. (Both pro-
cedures are detailed on the next page). The UPS is heavy. Select a location sturdy enough to han-
dle the weight.
Consider that you install the UPS in a protected area that is free of excessive dust and has adequate
airflow. Ensure the air vents on the front and rear of the UPS are not blocked.
Do not operate the UPS where the temperature and humidity are outside the specified limits. Refer to
Specifications at the APC web site www.apcc.com/support/contact

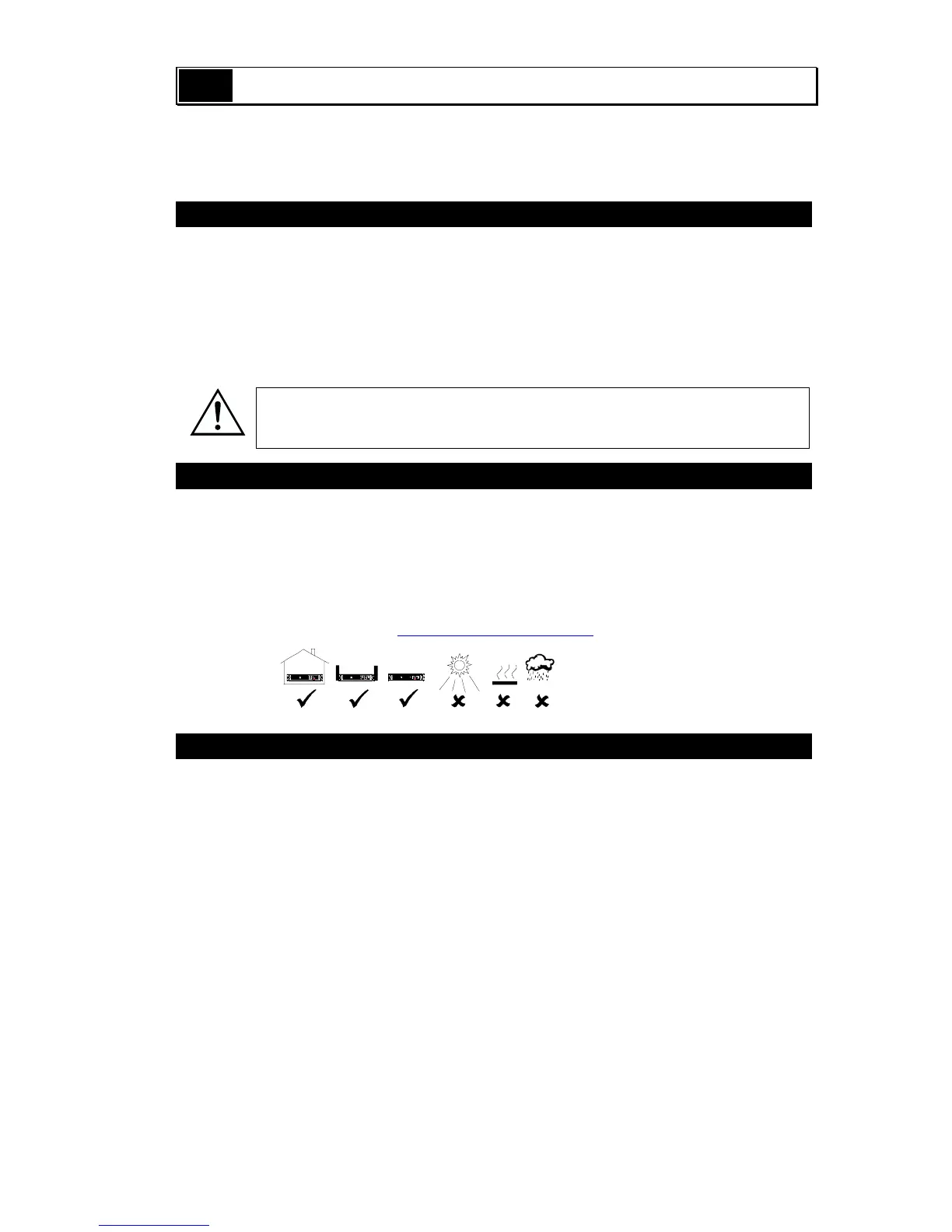

PLACEMENT
Sm art-U PS
m
r
-
P
Sm art-U PS
INSTALLING THE SMART-UPS
To install the Smart-UPS, follow these basic steps. Each step is described in detail on the following
pages.
1. Stack the UPS on the battery pack or install the mounting rails in the rack (four-post rack instal-
lation only). Place the UPS in the rack. Install the UPS at or near the bottom of the rack.
2. Connect the battery and attach the front bezel.
3. Connect the equipment and power to the UPS.
4. Turn on the UPS.
