APC Smart-UPS Operation Manual

5Smart-UPS 750/1000/1500/2200/3000 VA 100/120/230 Vac 500 VA 100 Vac Tower
Display Panel
Using the display interface
Use the UP and DOWN keys to scroll through the main menu options. Press ENTER to view the
sub-menus under each main menu option. Press ESCAPE to exit a sub-menu and return to a main menu.
Standard menus
The Standard menus are the most commonly used menus.

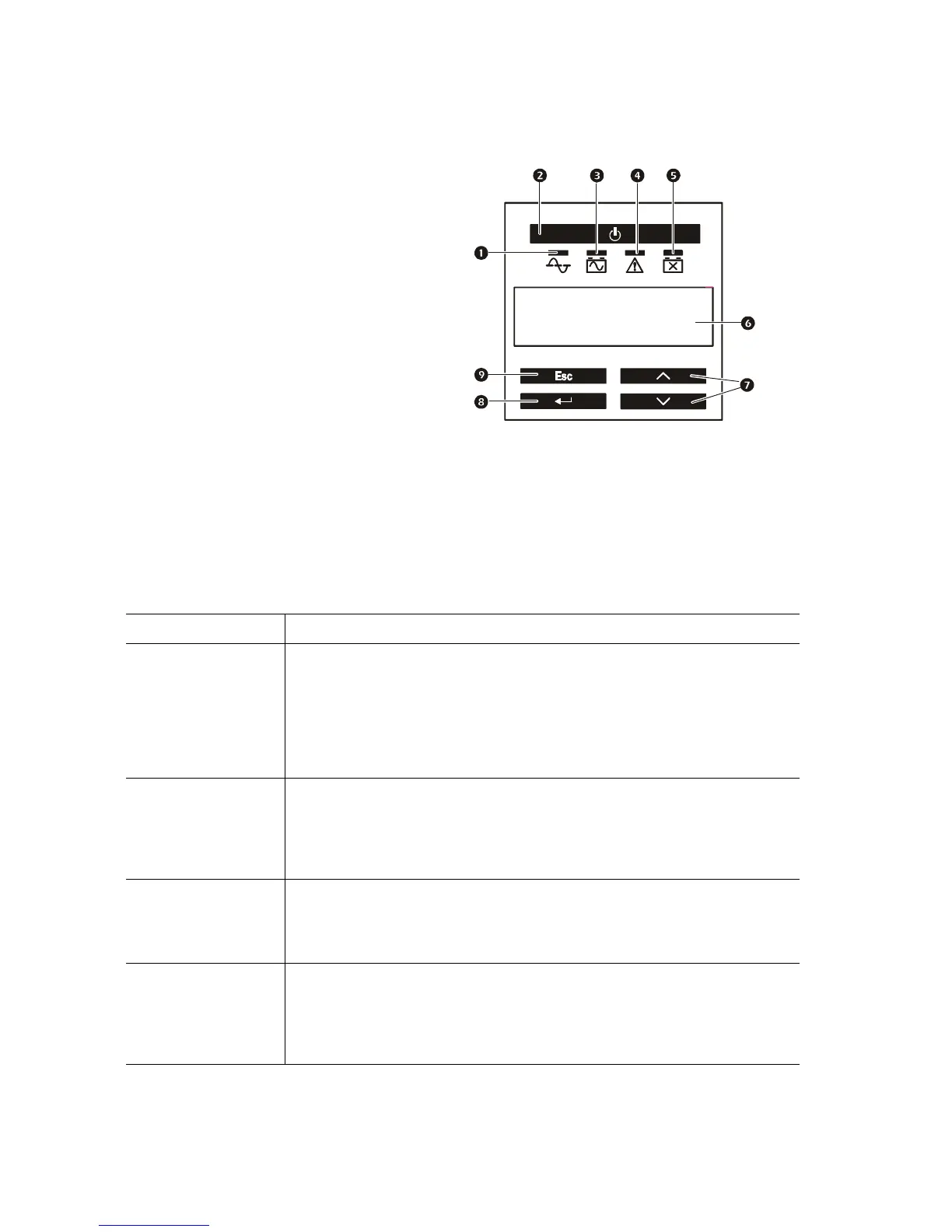

1 Online LED
2 On Battery LED
3 UPS Output
ON/OFF key
4 Fault LED
5 Replace Battery LED
6 Display screen
7
UP and DOWN keys
8
ENTER key
9
ESCAPE key
Menu General Functions
Status
View UPS information:
• Operating Mode
• Efficiency
• Load Power
• Load VA
• Battery Charge state
• Estimated Runtime
•Battery Temp
• Input
•Output
• Last Transfer
• Last UPS Self Test
Configuration
Configure UPS settings:
• Language
• Local Power Quality: Good, Fair, Poor
• Menu Type: Standard or Advanced
• Audible Alarm
• Display (Auto Dim, Auto Off, Always On)
• Battery Install Date
• Reset to Factory Default
Test & Diags
Perform UPS tests and diagnostic functions:
• UPS Self Test
• UPS Alarms Test
• Calibration Test
About
View UPS information:
• UPS Model
• UPS Part No.
• UPS Serial No.
• UPS Manufacture Date
• Battery Part No.
• Battery Install Date
• Replace Battery by
• UPS Firmware 1
su0343a
A
PC B
y
Schneider
Electric
