3Smart-UPS SRC 5000/6000/8000/10000 VA
Product Overview

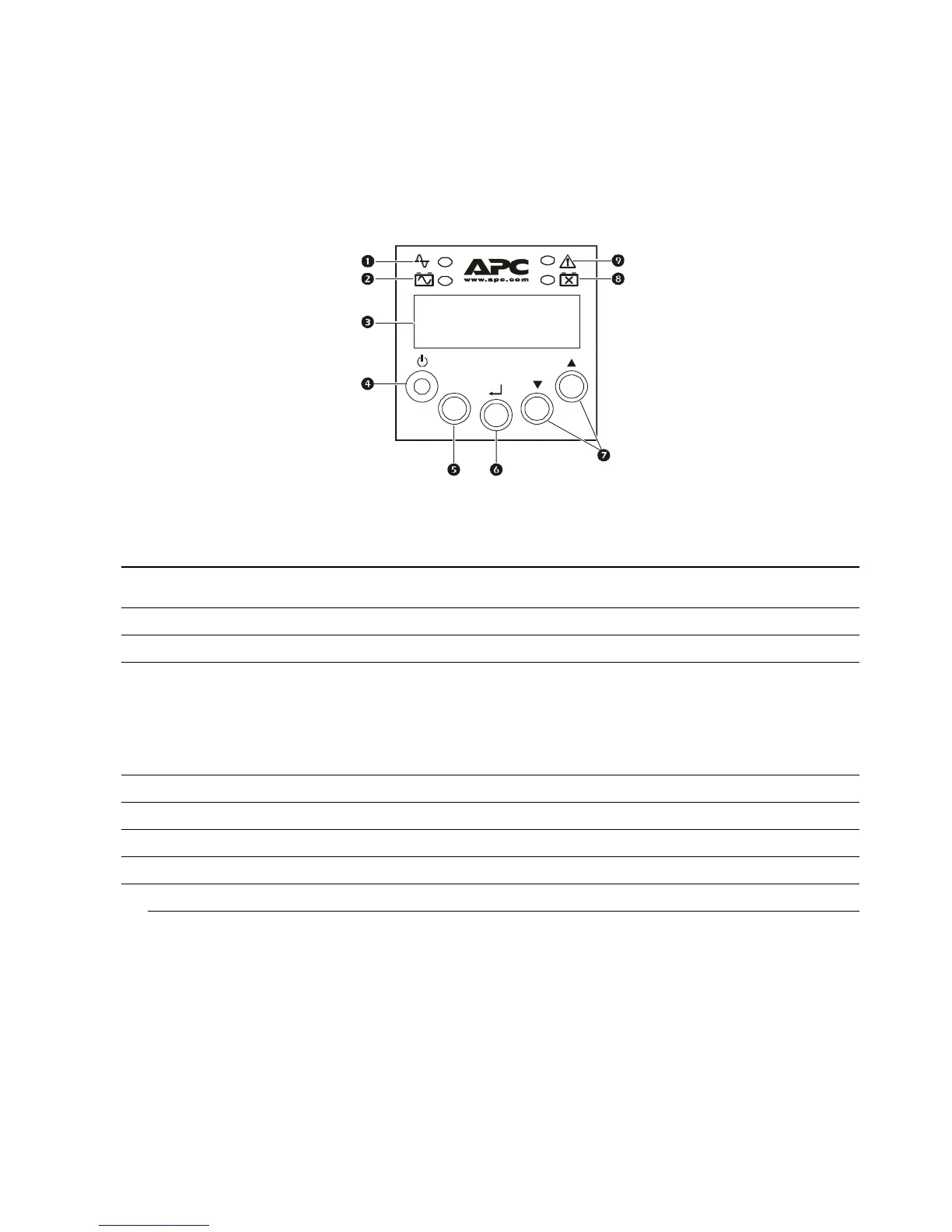

Front panel
Display interface
Indicator Description
Online indicator The UPS draws utility power and performs double conversion to supply power
to the connected equipment.
On battery indicator The UPS supplies battery power to the connected equipment.
Display screen Display interface
UPS ON/OFF button • Press the ON/OFF button to turn the UPS on and off.
• Press and hold the ON/OFF button to transfer the UPS into bypass mode.
While in bypass mode connected equipment will receive utility power and
protection will be provided by the input circuit breaker. During bypass mode
operation the UPS does not provide battery back-up power or protection from
power fluctuations.
Escape button Press the ESC button to exit a sup-menu and return to the main menu.
Enter button Press the ENTER button to view the sub-menus under each main menu option.
Up/Down buttons Press the UP/ DOWN buttons to scroll through the main menu.
Replace battery indicator The battery is disconnected or must be replaced.
Fault indicator The UPS detects an internal fault.
suo0590a
ESC
