Apeks Supercritical The Duplex™ Operation Manual
13
Revision Date 8/28/2018

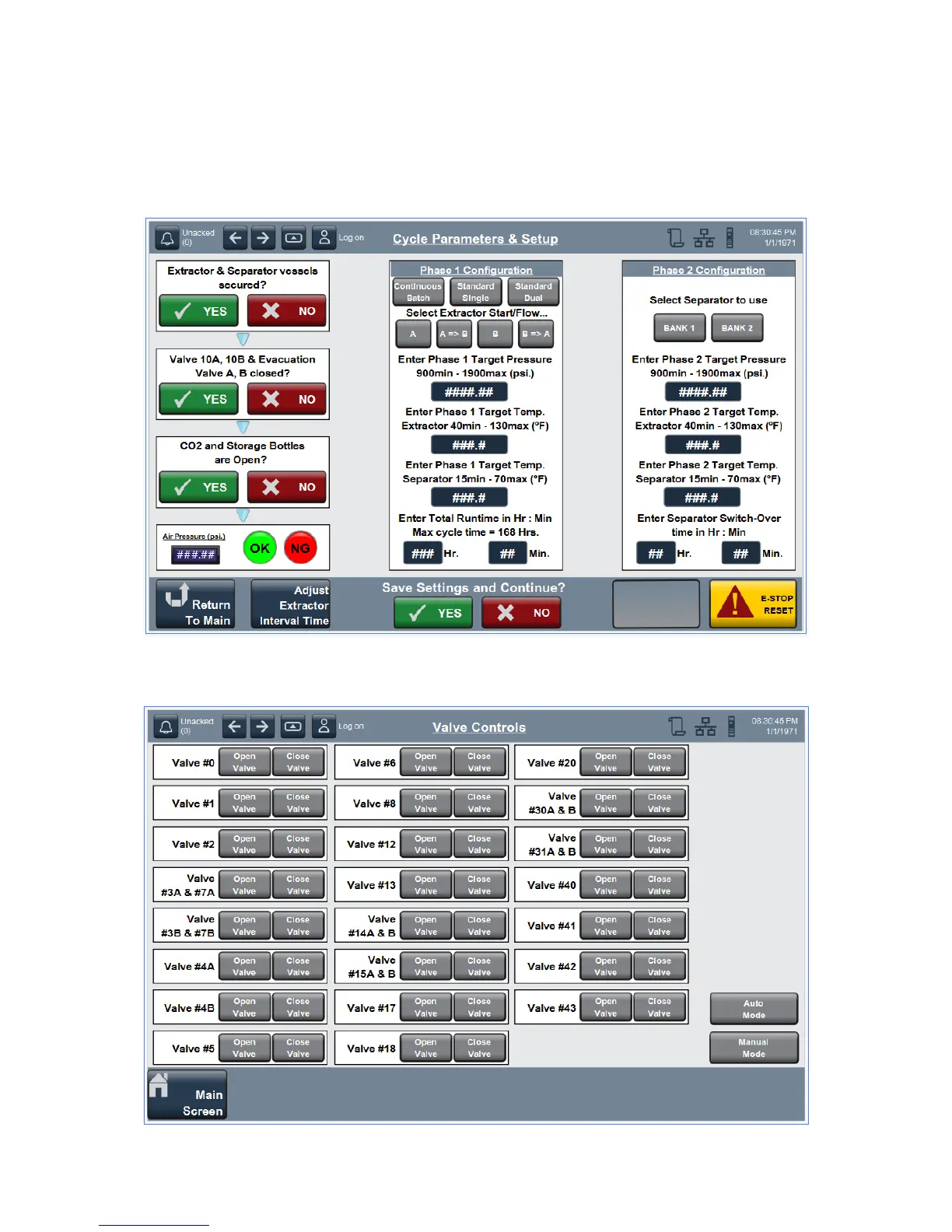

2.2.3. Cycle Parameters Screen – This screen is the place where the user will program how the
system will be ran. They will set target pressure and temperature, select run modes, set run
times and switch over times, and select which separator bank to start with. Many cycle
parameters such as times and temperatures can be adjusted during the run but run modes
(Single or Double Extractor or Continuous Batch) cannot be adjusted after the run begins.
2.2.4. Valve Control Screen – This screen is for Apeks use only and is locked from customer use.
Valve positioning can be seen on this screen. Current valve position will be highlighted.
