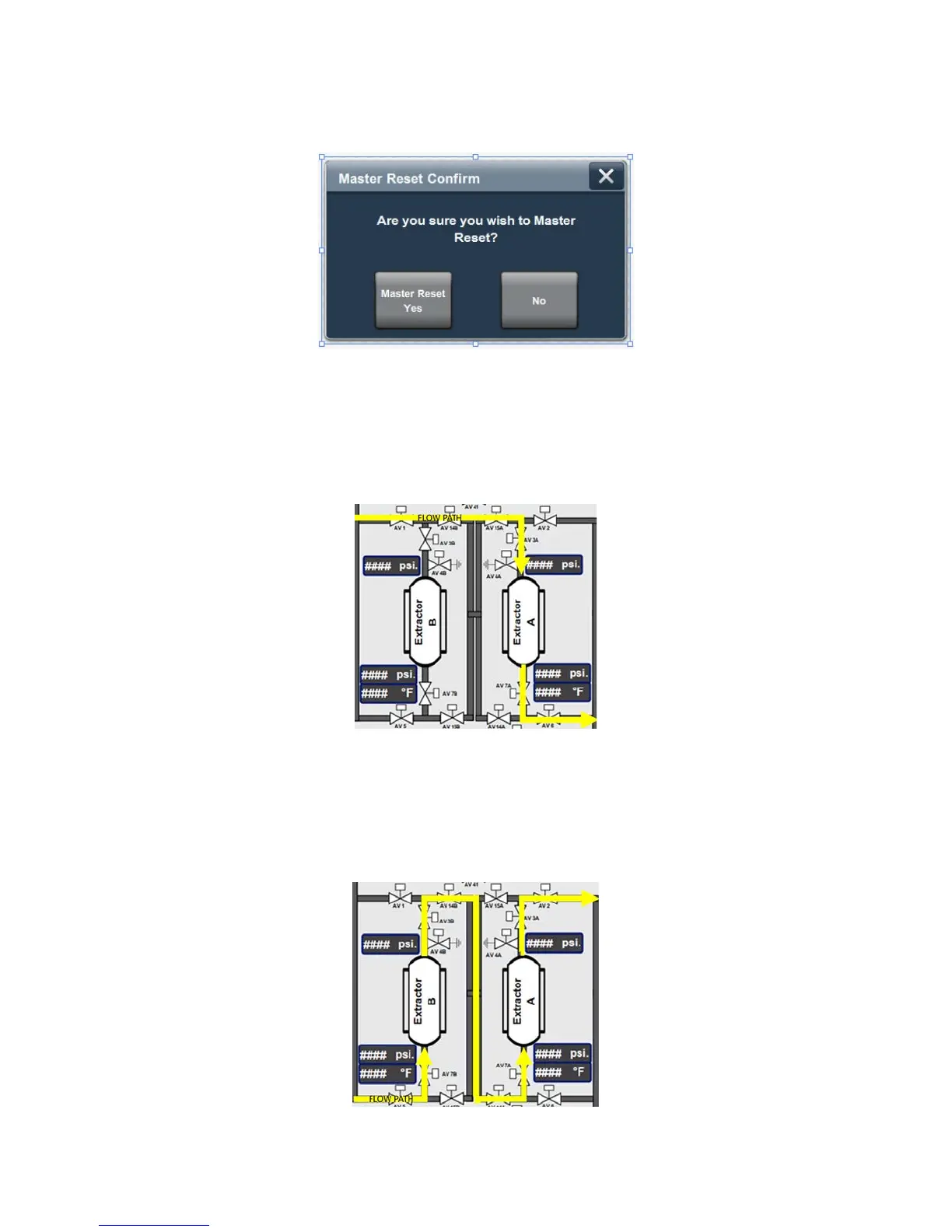

2.2.11.6. Master Reset Confirm – This window will popup when a master reset is selected to
make sure it is not done accidently.
2.3. Running Modes
2.3.1. Single Extractor – In this run mode, the system will run only one extractor (selected by the
operator) for the duration of the cycle time and will then recover the CO
2
. The operator will also
have the opportunity, if they choose, to select two different cycle parameters to be run and
which separator bank to use for each set of parameters. An example of Forward Flow through
Extractor A only can be seen below.
2.3.2. Dual Extractor – In this run mode, the system will run both extractors for the duration of the
cycle time and will then recover the CO
2
. The operator can choose to have the CO
2
flow through
either vessel first, e.g. A then B or B then A. The operator will also have the opportunity, if they
choose, to select two different cycle parameters to be run and which separator bank to use for
each set of parameters. An example of Reverse Flow through Extractor B to A can be seen
below.
