3.4 E1608 Connections

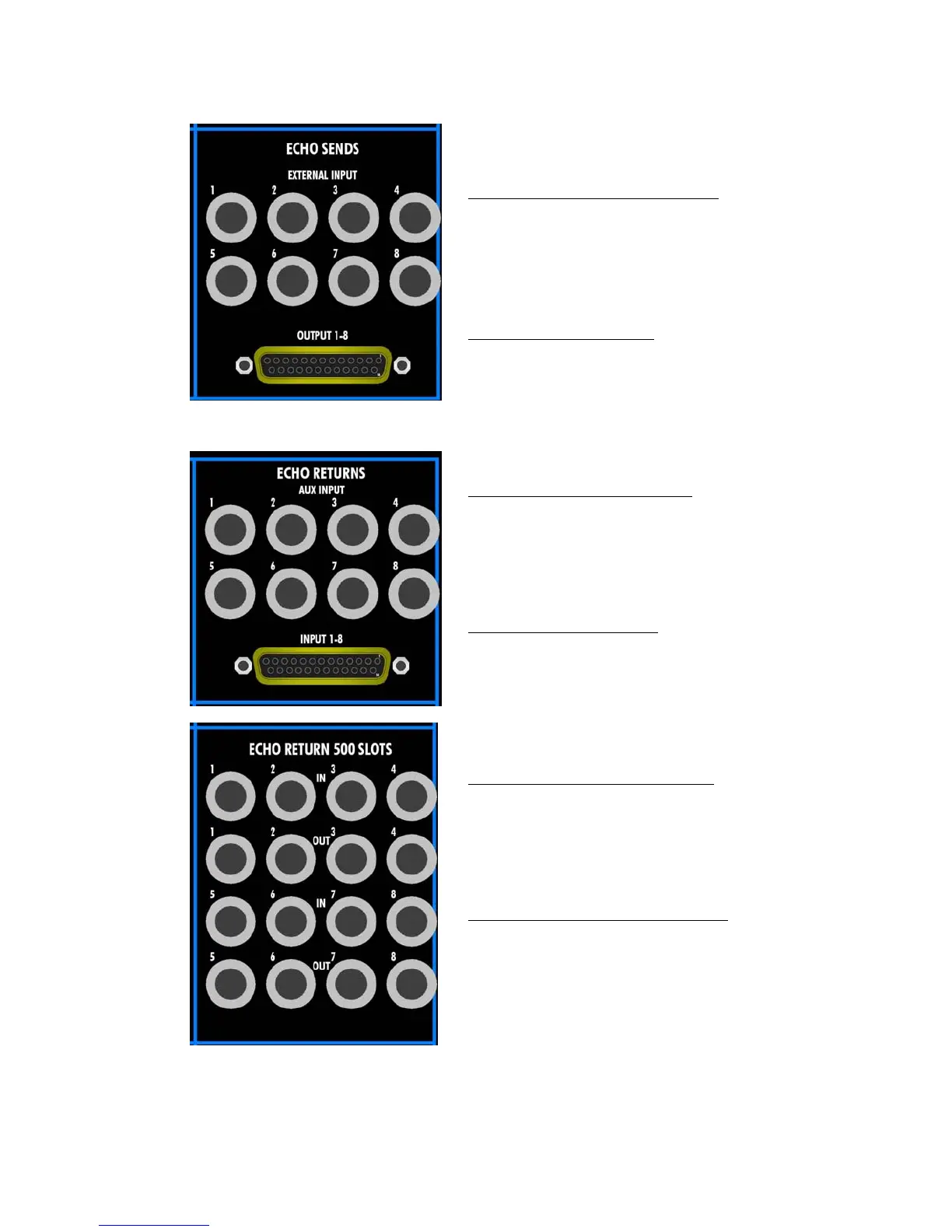

The rear panel connections for the E1608 Echo Send/Return module are as follows:
ECHO SENDS EXTERNAL INPUT 1-8:
• Balanced, Line-level
• 1/4” tip-ring-sleeve jack
ECHO SENDS OUTPUT 1-8:
• Balanced, Line-level
• Female 25-Pin Sub-D connector
ECHO RETURNS AUX INPUT 1-8:
• Balanced, Line-level
• 1/4” tip-ring-sleeve jack
ECHO RETURNS INPUT 1-8:
• Balanced, Line-level
• Female 25-Pin Sub-D connector
ECHO RETURNS 500 SLOTS IN 1-8:
• Balanced, Line-level
• 1/4” tip-ring-sleeve switching jack
• The signal from the Reverb Return Input
connector is replaced with this signal when a jack
is inserted
ECHO RETURNS 500 SLOTS OUT 1-8:
• Balanced, Line-level
• 1/4” tip-ring-sleeve jack
• Also normalled to feed the Echo Return module
input
