9.5 268B Control Room Monitor Output Connections

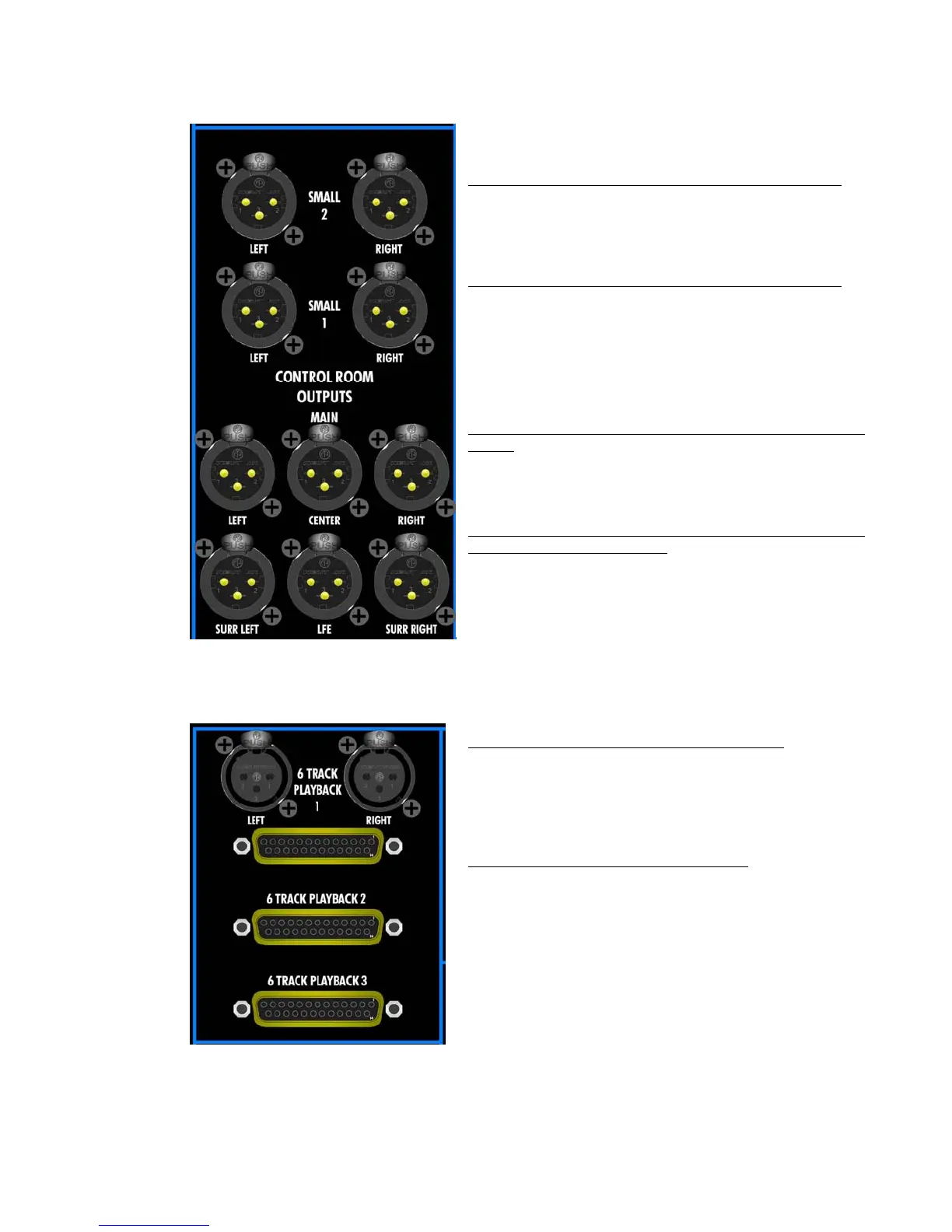

The rear panel connections for the 268B Monitor Outputs are as follows:
9.6 845B 6-Track Playback Input Connections
The rear panel connections for the 845B Control Room Control Monitor module are as follows:
SMALL 2 CONTROL ROOM OUTPUTS LEFT and RIGHT:
• Balanced, Line-level
• Male XLR
SMALL 1 CONTROL ROOM OUTPUTS LEFT and RIGHT:
• Balanced, Line-level
• Male XLR
MAIN CONTROL ROOM OUTPUTS LEFT, CENTER,
RIGHT:
• Balanced, Line-level
• Male XLR
MAIN CONTROL ROOM OUTPUTS LEFT SURROUND,
CENTER, RIGHT SURROUND:
• Balanced, Line-level
• Male XLR
6 TRACK PLAYBACK 1 LEFT and RIGHT Input:
• Balanced, Line-level
• Female XLR connectors
• Left and Right are paralleled with input with
Sub-D connector
6 TRACK PLAYBACK INPUTS 1, 2, and 3:
• Left, Center, Right, Left Surround, Right
Surround, LFE
• Balanced, Line-level
• Female 25-Pin Sub-D connector
• 6 Track Playback 1 is paralleled with the Left
and Right XLR connectors
