API 1608 - Echo Send;Return Meters; Power Supply Voltage Indicators; Talkback Microphone

43

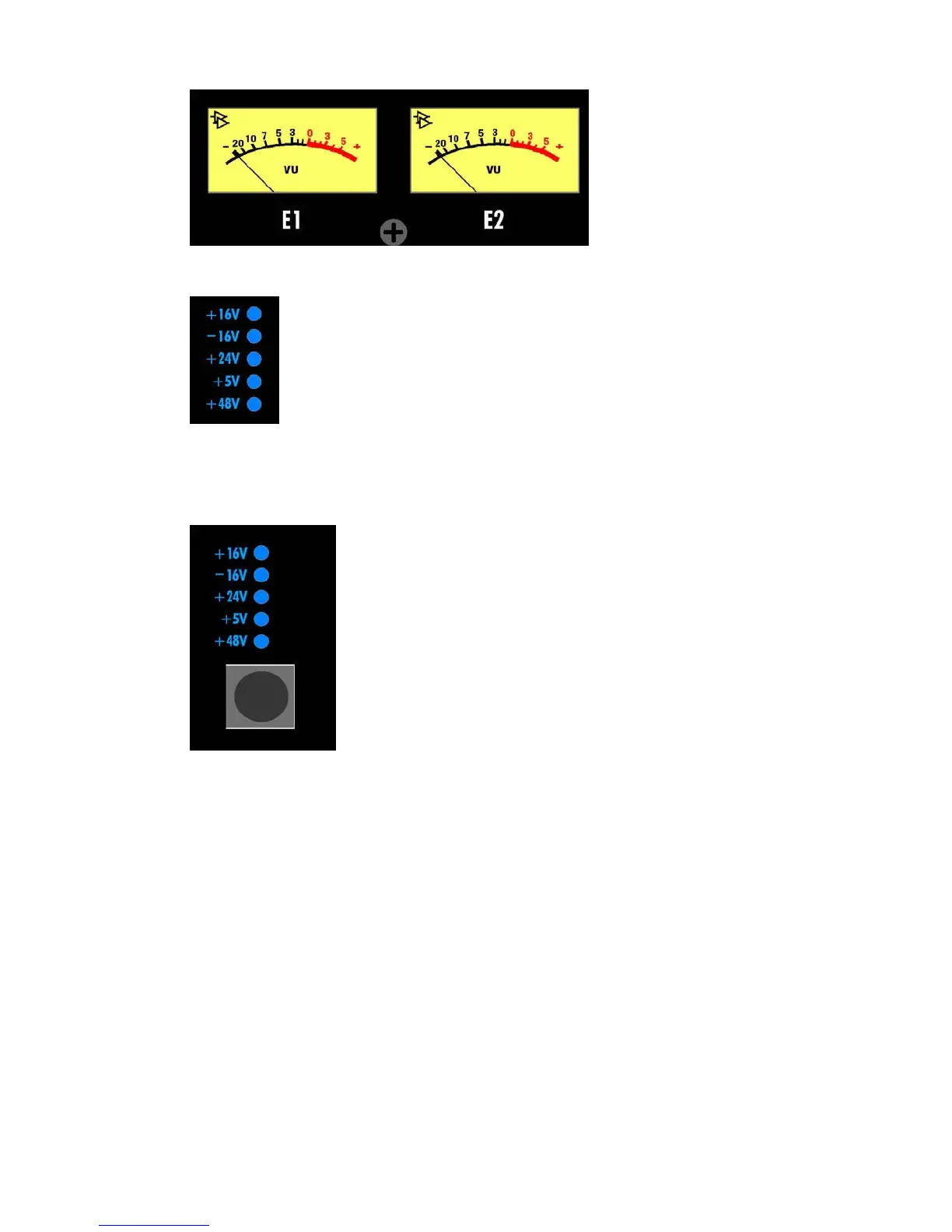

8.3 Echo Send/Return Meters
8.4 Power Supply Voltage Indicators
8.5 Talkback Microphone
The built-in Talkback Microphone is located below the Power Supply Voltage Indicators.
The E1 – E8 Meters display the
output of the eight Echo/Auxiliary
Send Masters (post the Echo Send
Master).
Blue LED indicators are provided for the five power supply voltages:
• +16V
• -16V
• +24V
• +5V
• +48V
The Power Supply Voltage Indicators are located to the left of the E5 and
E7 meters.
