52
Multitrack Recording Scenario #2

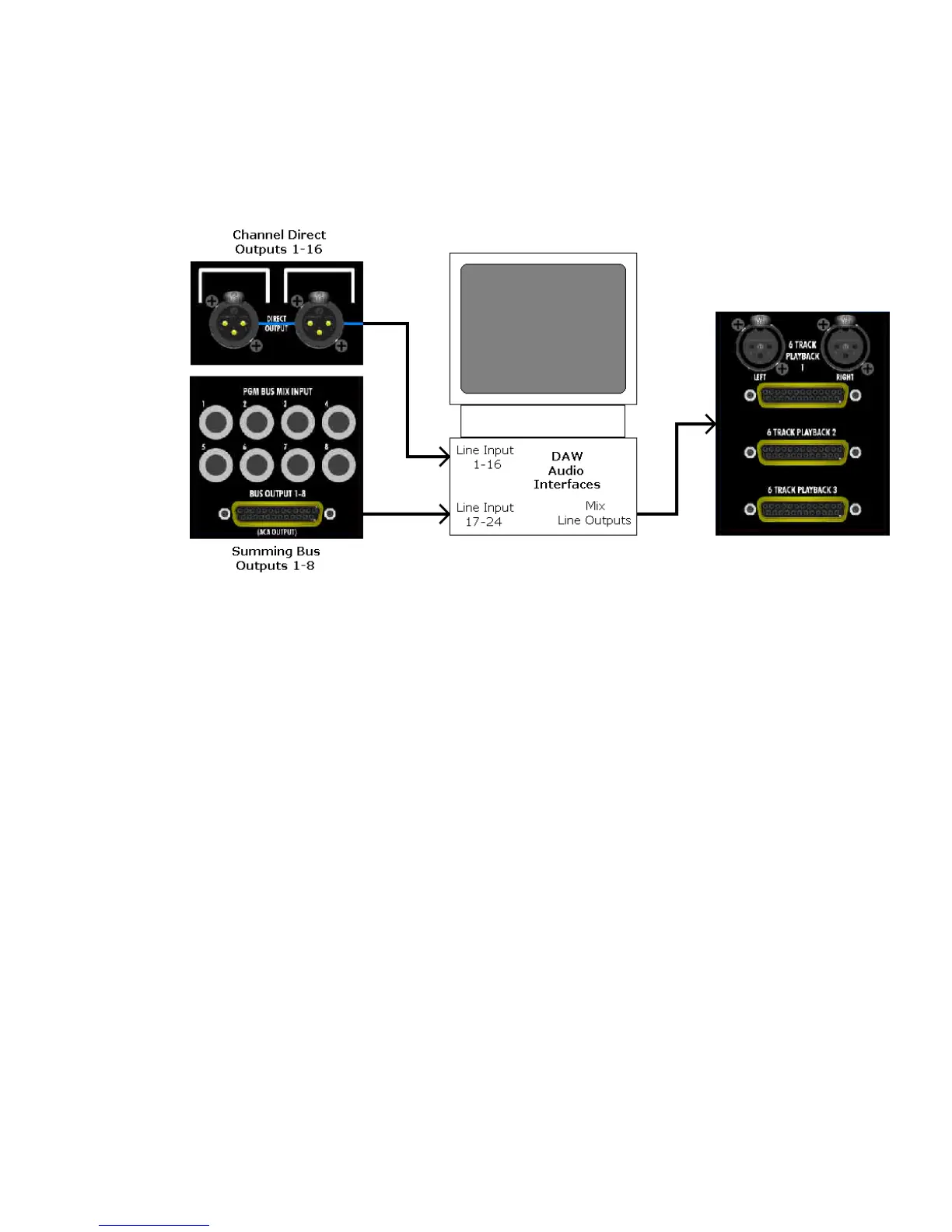

The diagram below shows the connections as above, except the mix return from the DAW is
routed directly to the 845B Control Room Monitor module for monitoring. In this scenario, the
Program Bus Inserts and Master Fader are bypassed.
This scenario requires the engineer to sum the recorded channels to a stereo or 5.1 mix within
the DAW and output this mix for monitoring via the 845B Control Room Monitor module.
