Apollo GEM Mixed Operating Modes

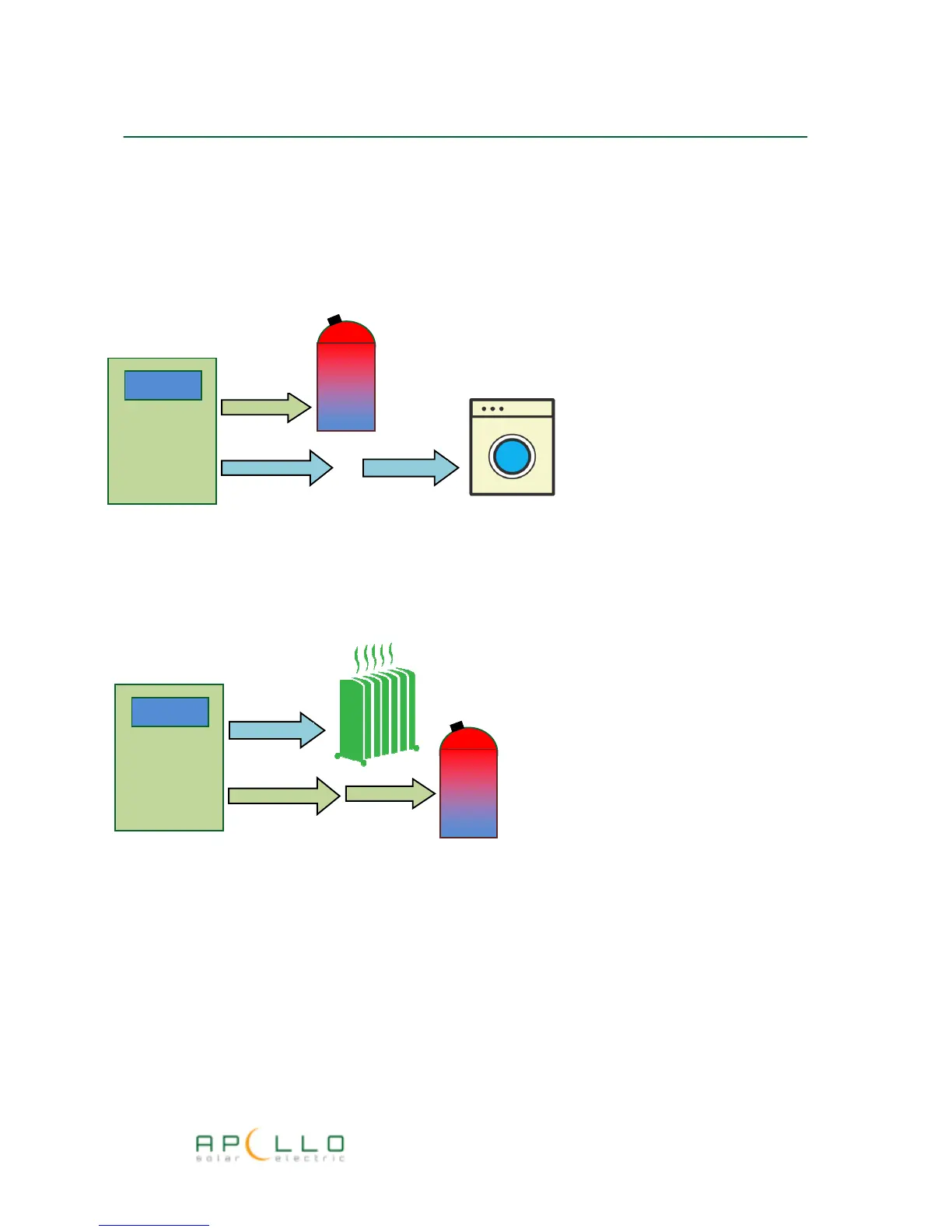

The diagrams below are examples of mixed mode, variable and threshold mode, operation.
Initially power is diverted to output 1 in threshold mode.
if the first output is connected to a heating appliance power is then diverted to output 2
in variable mode when the set temperature is reached on output 1
Apollo GEM User Manual
Mixed 2 Output
Priority Mode
Initially power is diverted to output 1 in variable mode. When output 1 has reached the set temperature
threshold mode operation begins on output 2
VARIABLE
Output 1
Output 2
THRESHOLD
Mixed 2 Output
Priority Mode
GEM Controller
VARIABLE
Output 1
Output 2
THRESHOLD
GEM Controller
