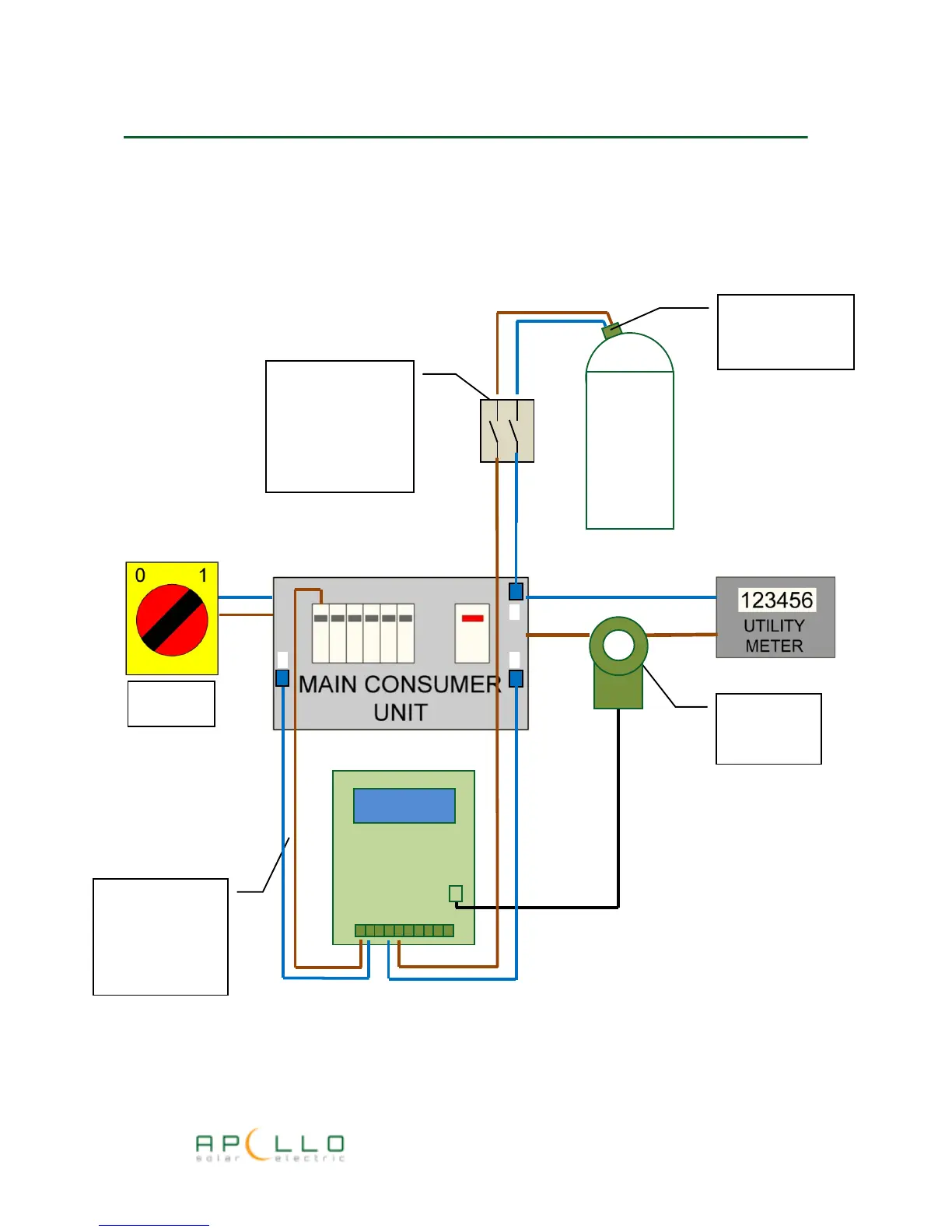

Apollo GEM Direct Wired System Schematic
The drawing below shows the wiring connections for the Apollo GEM system when directly
wired.
(earth connections not shown for clarity)
GEM Controller
Apollo GEM
Current Sensor
Clamp
Electric Hot Water
Heater Element
Double Pole
Electric Hot Water
Isolator with 13A fuse
adjacent to water
cylinder
16A
Electric Hot Water
Circuit from Electric
Hot Water MCB or
Fuse
PV System
Isolator
N
Apollo GEM Installation Manual
