Page 34
Connecting to the terminals
Heating appliances draw high currents. It is important that the cables are properly connected
to ensure safe operation of the equipment.
Follow the steps below to ensure connections are properly made to the Apollo GEM controller.

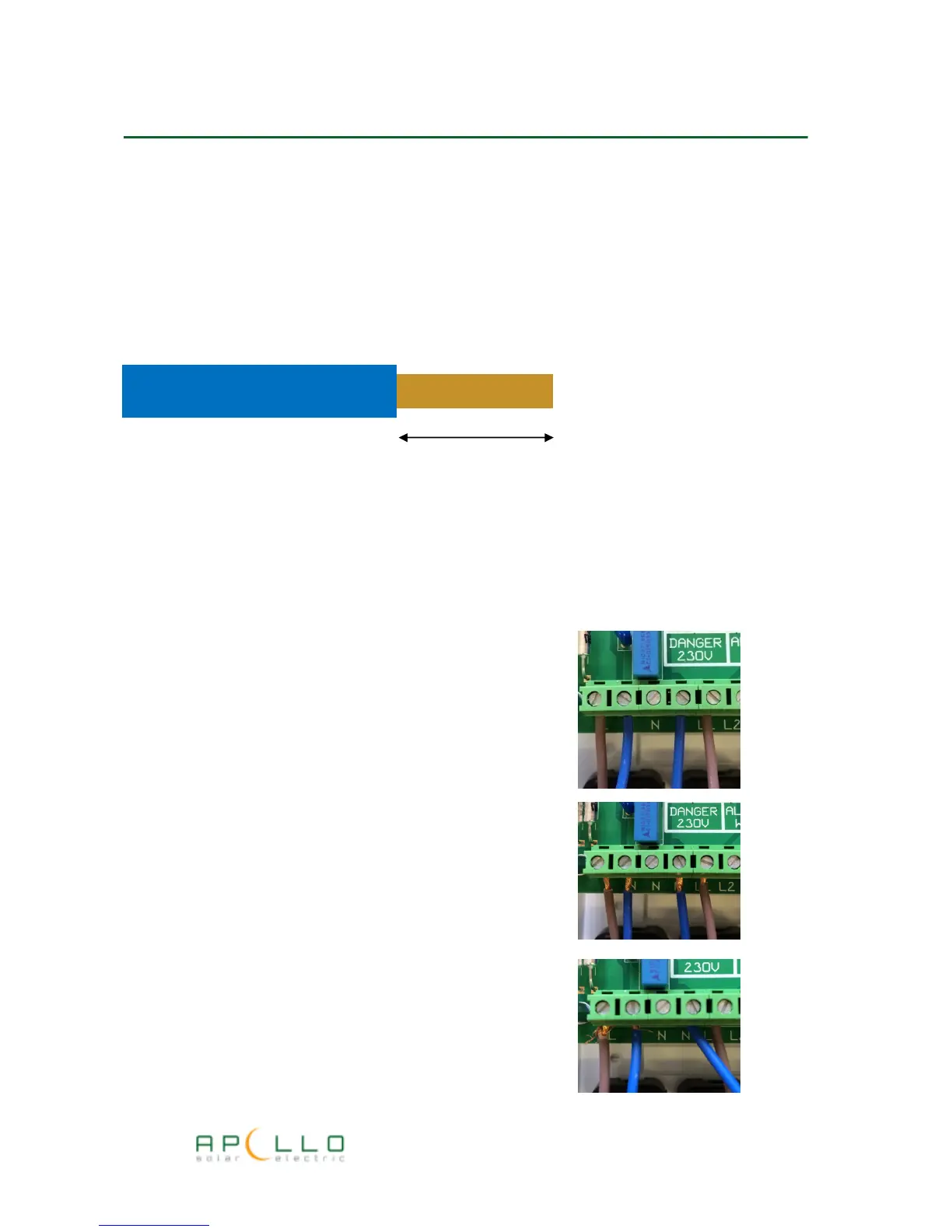

• Prepare the cable end as shown:
• Insert the wire fully into the terminal
• Use the correct size screwdriver and ensure terminal screws are tight but not over tight.
• Check that there are no “escaped” wire strands at the terminal entry.
Strip 8mm
Twist tightly together
Do NOT solder
Good Termination
Wires not fully inserted
or stripped too long
“Escaped” wire strands
