Threshold mode increased power operation
In threshold mode operation the standard Apollo GEM can support a total load of 3KW, i.e. 3KW on each
output if operated in priority mode or a total of 3KW for both outputs if operated in 1 & 2 threshold
mode.
Threshold mode operation can support loads of up to 16KW per output if the load is connected to the
output via a suitably rated contactor.
Apollo GEM Installation & User Manual
Apollo GEM User Manual
Output L1
Output L2
Supply 2
Up to 3KW load
Up to 16KW load
Contactor
Output L1
Output L2
Supply 2
Up to 16KW load
Up to 16KW load
Contactor
Supply 3

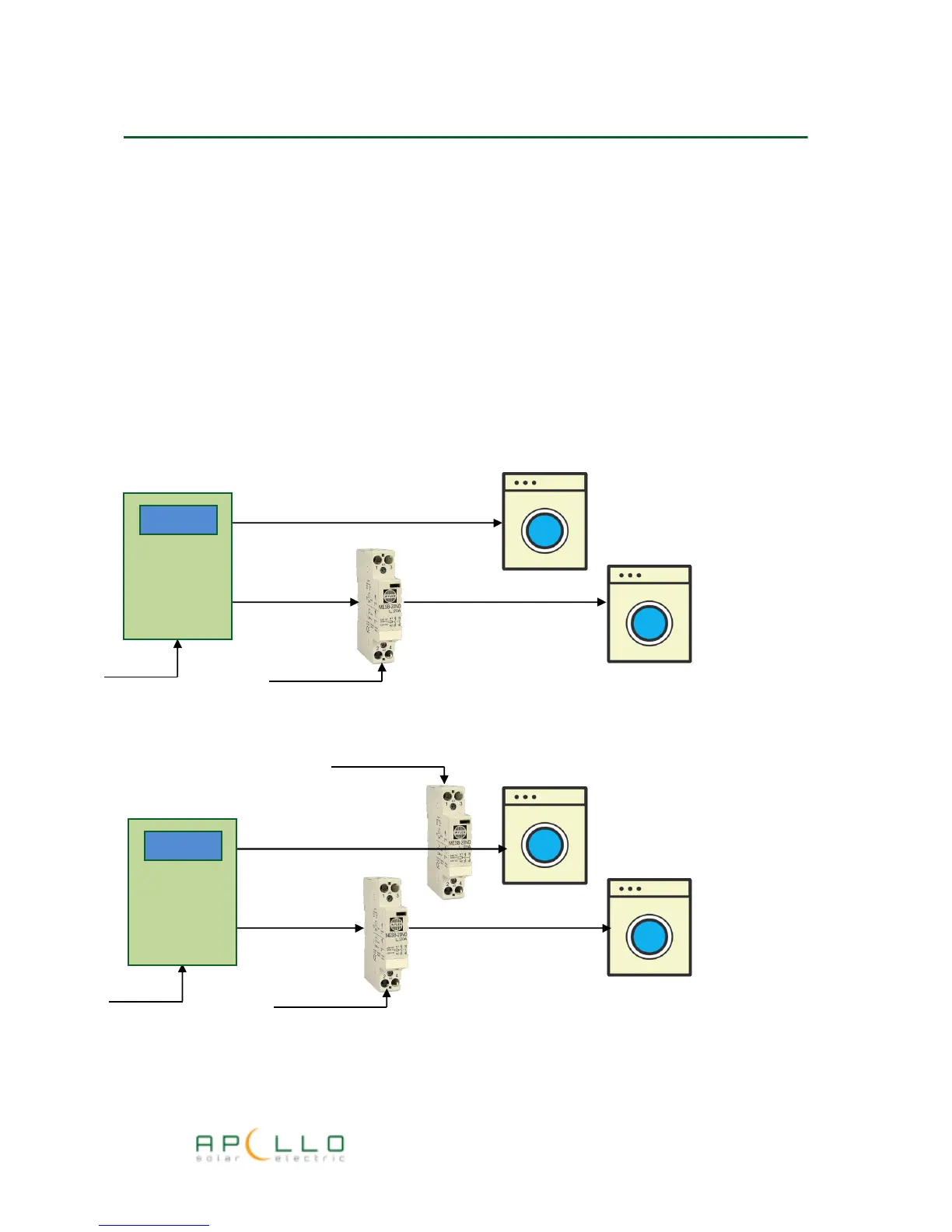

Example High power threshold mode output configurations
