Page 31

GEM Controller

Apollo GEM Installation Manual

Live to Electric hot water element

Electric

water MCB

or Fuse

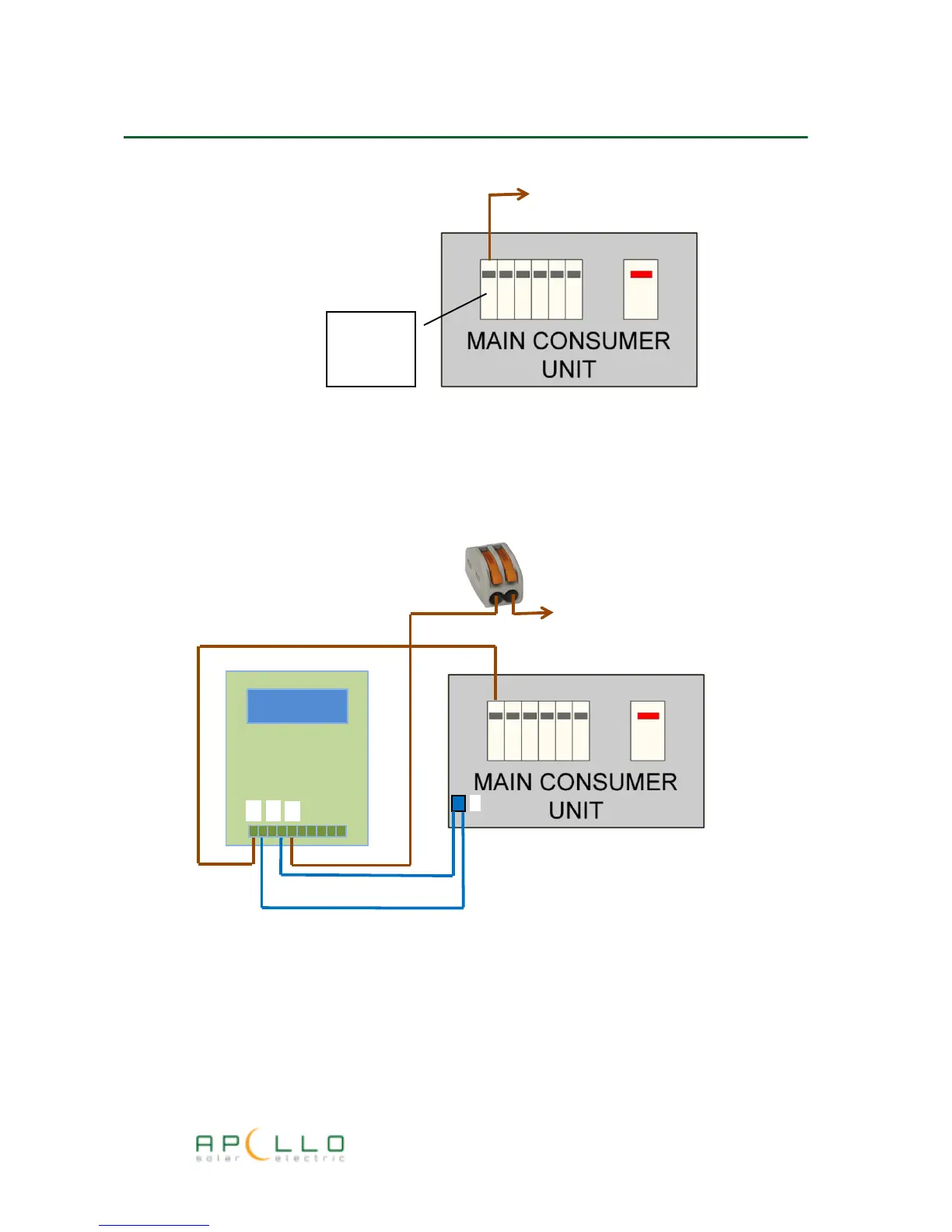

Direct wired electric hot water circuit before Apollo GEM installation

(Neutral and earth connections not shown for clarity)

Live to Electric hot water element

Direct wired electric hot water circuit after Apollo GEM installation

(Earth connections not shown for clarity)
