Apollo Test Set - User Manual
32

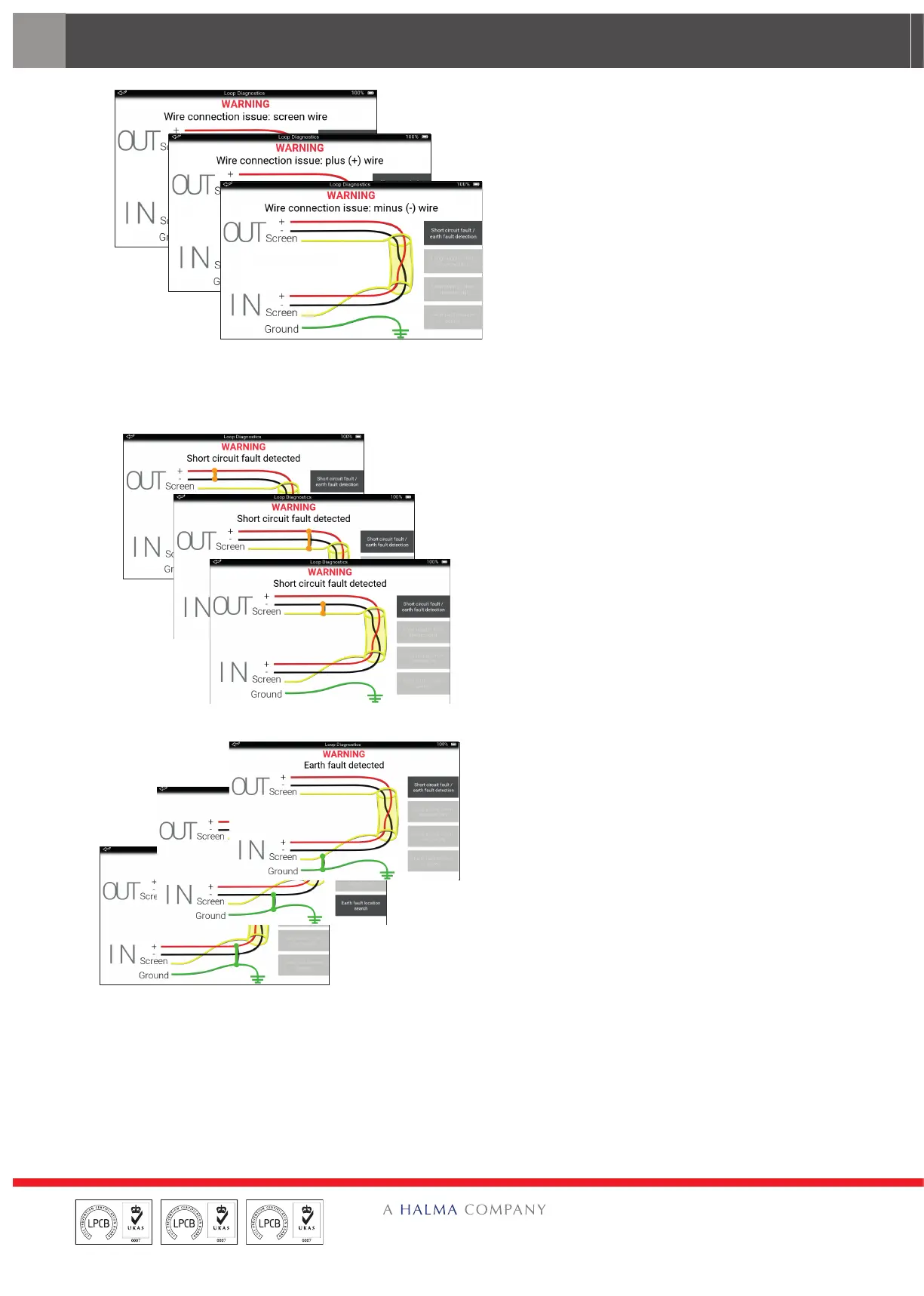

The first thing tested is the loop
integrity.
If there is a broken wire or it is not
plugged into a socket, a warning
message ‘Wire connection issue’
appears below the top bar.
In addition it will tell you which wire
is carrying the fault. The message will
continue as appropriate with on of these
statements:
‘ screen wire’
‘plus (+) wire’
‘minus (-) wire’
The fault should be investigated and
corrected before continuing.
The grey box on the right of the
schematic shows what test is being
done.
Short circuit fault
If a short circuit fault is detected
between;
‘+ and -’
‘+ and screen’
‘- and screen’
A warning message ‘Short circuit fault
detected’ appears below the top bar and
a bold orange connection line is shown
between the two aected wires.
The fault should be investigated and
corrected before continuing.
Earth fault
If an earth fault is detected between:
‘+ and GND’
‘- and GND’
‘Screen and GND’
A warning message ‘Earth fault
detected’ appears below the top bar
and a bold green connection is shown
between the two aected wires.
The fault should be investigated and
corrected before proceeding.
