Apollo Test Set - User Manual
33

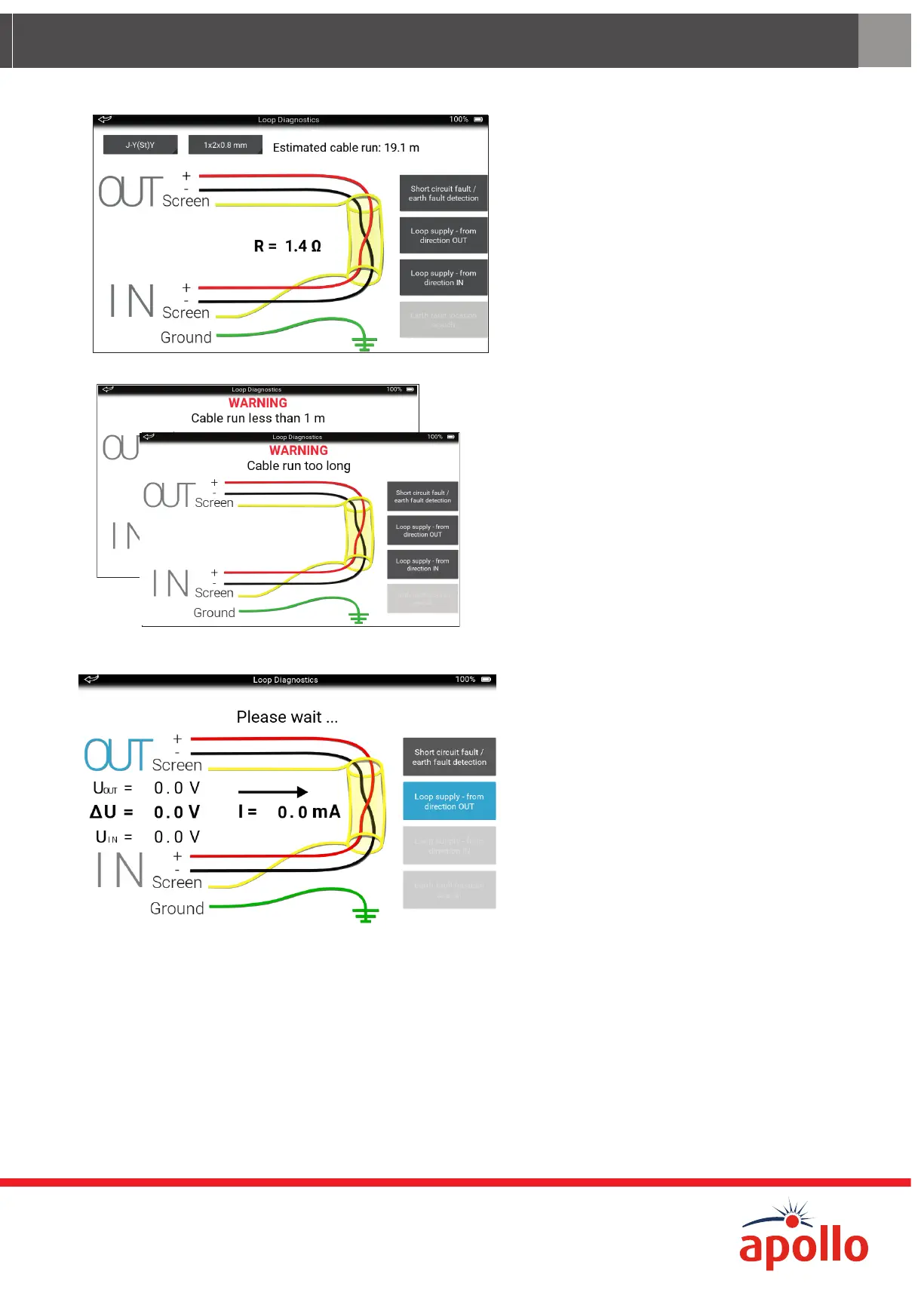

Cable impedance and cable run
When a cable run is between one and
4178 metres, cable impedance and
cable run values are shown on the
screen.
If the cable run is either less than one
metre in length, or, more than 4178
metres a warning message appears
below the top bar.
Loop supply - from direction OUT
