Apollo XP95 Installation Guide

7
Setting the address
The address of the beam detector is set using the DIL
switch. All segments of the switch are set to ‘0’ or ‘1’
using a small screwdriver or similar tool.

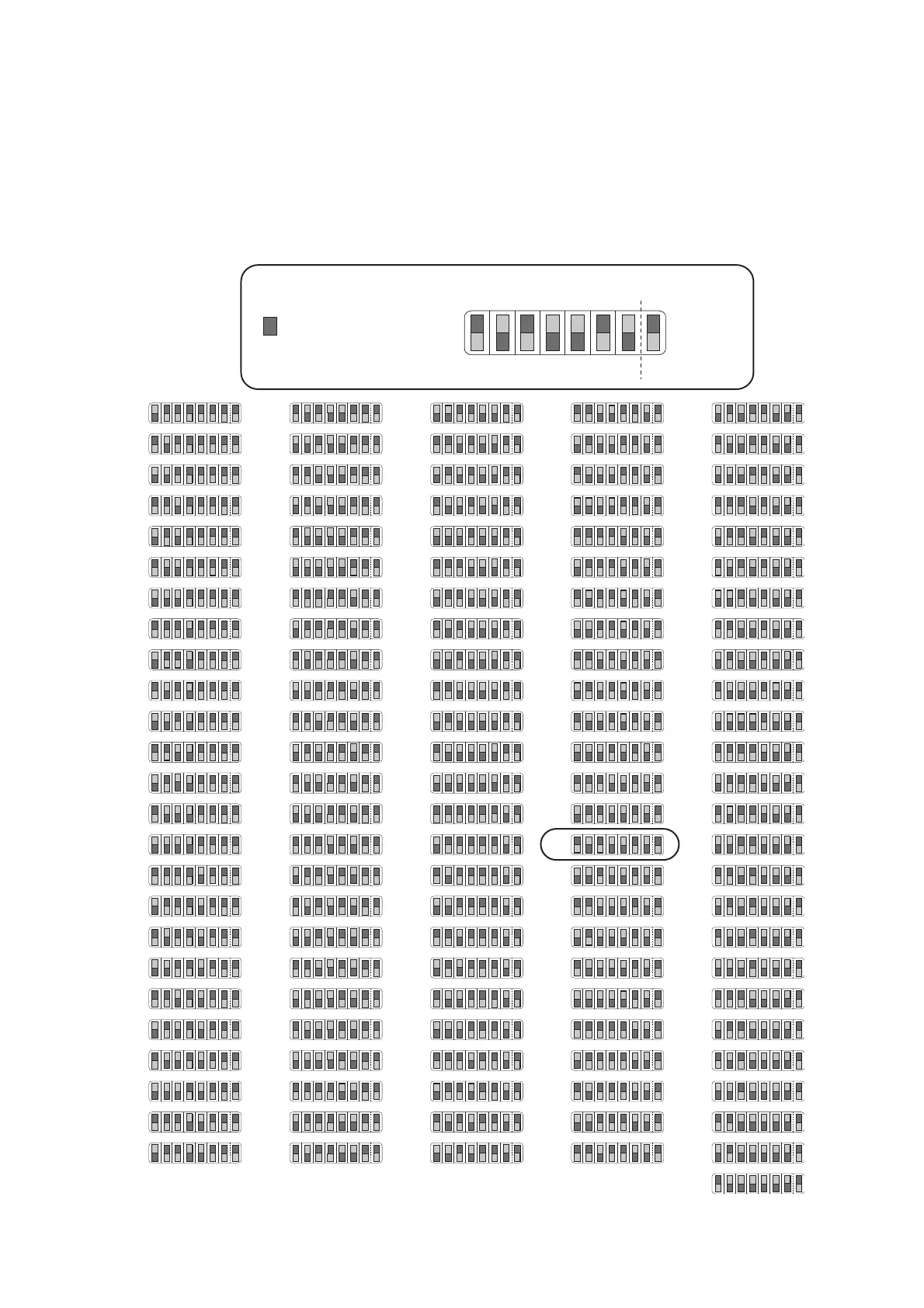

Address settings
A complete list of address settings is shown below.
= Switch
Position
0
101101
Address 90 =
Example:
0
1
1 2 4 8 16 32 64
NORMAL
OPERATION
A
ddress
1
ALIGNMENT
MODE
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
91
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
www.acornfiresecurity.com
www.acornfiresecurity.com

Apollo XP95 Specifications

General

Color	White
Operating Voltage	17V to 28V DC
Humidity	0% to 95% RH (non-condensing)
Type	Optical Smoke Detector
Protocol	XP95 (Apollo Protocol)
Certification	EN54
