SW Version 2.04 30-January-2009 Page 76 of 128
Service 4 (From input slot 2, port 0, output SID 1)
Resulting service order in PAT
Service 3
Service 2
Service 1
Service 4
4.7.3 Generation of IP-OUT SPTS Streams
A Single Program Transport Stream (SPTS) output is only supported by the IP output
card. The key difference between an SPTS and an MPTS is really the way the GUI
provides a simplified setup for the SPTS output, and that the SPTS does not allow to
configure the Network and TS id. For an SPTS output the Network ID is hardcoded to
8000 + slot id of the output card, and the TS ID is automatically selected from the
range 1-250. Hence the first SPTS output on an IP output card in slot 16 would
typically be NETWID=8016, TSID=1.
The following procedure shows how to create an SPTS.
Navigate to the Outputs folder, click on the IP module you want to configure and a
window similar to the one in Figure 60 will be displayed.

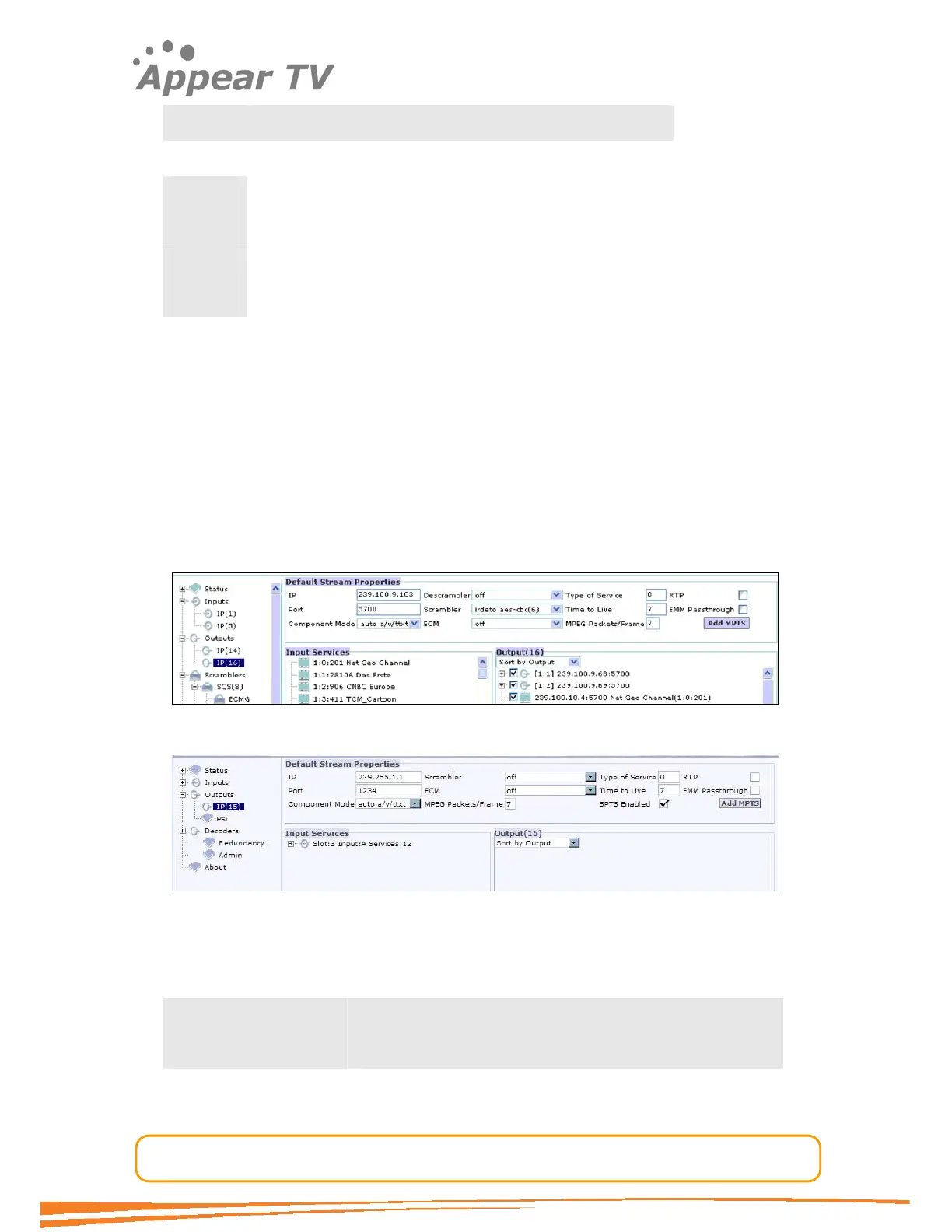

Figure 60 - IP SPTS output
Before assigning a service to the IP output some default parameters may be specified
such as the IP address, port number, etc. These settings can be found under the
Default Stream Properties heading. The following parameters can be configured by
the operator:
IP Set the IP address of the SPTS
Port Set the Port number
