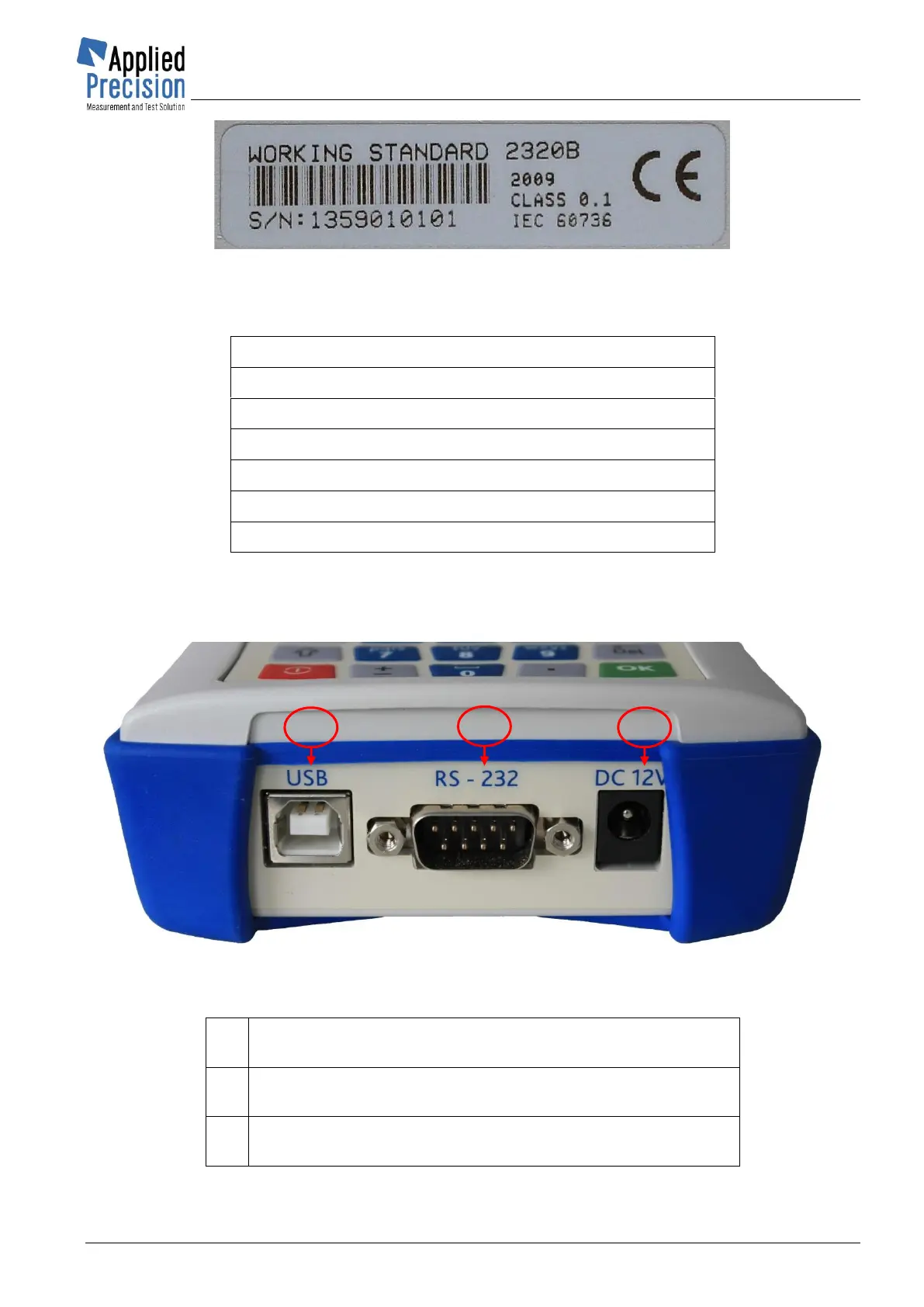

Figure 7 – Name plate
Name plate contains following information:
• Device Brand and Model Number
• Bar Code containing Serial Number
• Serial Number
• Year of Manufacture
• Accuracy Class
• Applicable Standards
• CE mark
3.3 Bottom Connectors
Figure 8 – Bottom side connectors
1
USB Connector
- communication connector USB
2
RS-232 Connector
- communication connector RS-232
3
Power Connector
- connector of power adapter (+12V)
