4. Device Software Overview
This chapter describes user interface of Working Standard software.
* Screen identification codes (for example
* P42
) can be found in captions of all described software screens.

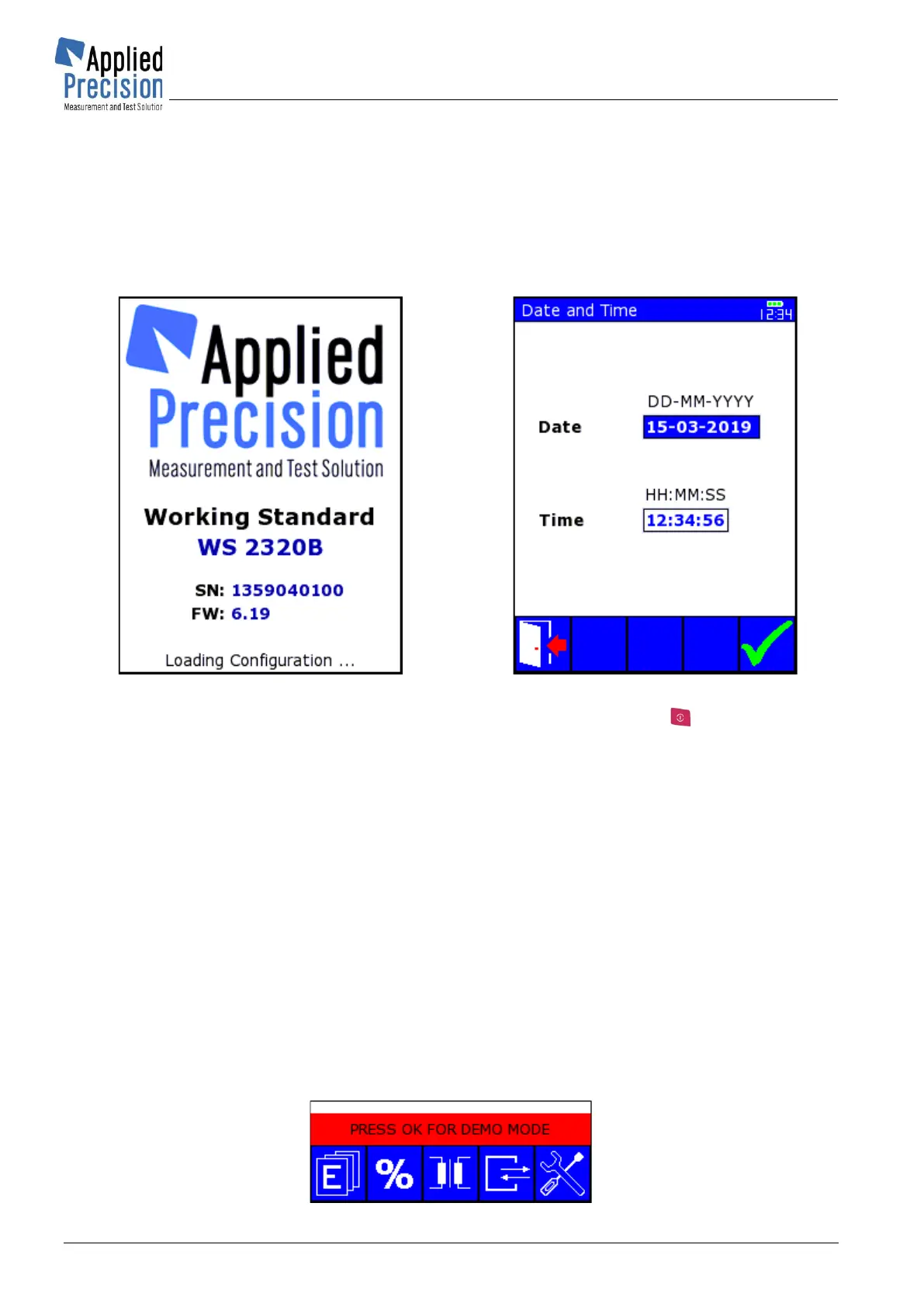

4.1 Initialization
Device Initialization screen is shown after switching on the device using red key .
Device initializes itself and detects all connected accessories during initialization.
Voltage and current sensors have to be connected to the device only when device is switched off –
otherwise the sensors are not recognized by device software. Device loads parameters of sensors only
during device initialization (immediately after switch-on).
In case when devices date & time are incorrect (outside of limit) then Date & Time Adjusting screen is
shown and user has to set correct date & time.
4.2 Demo Mode
Demo Mode in which device is simulating all its functionalities can be used for demonstration purposes
or for learning operation of the device.
Demo Mode can be entered only when device is switched on without any measurement sensor
connected to measurement inputs A and B (both inputs have to be empty). Other connectors do
not have any influence on this.
In that case first shown screen after Device Initialization screen (and possible Date & Time Adjusting
screen) contains red message PRESS OK FOR DEMO MODE in bottom of the screen.
