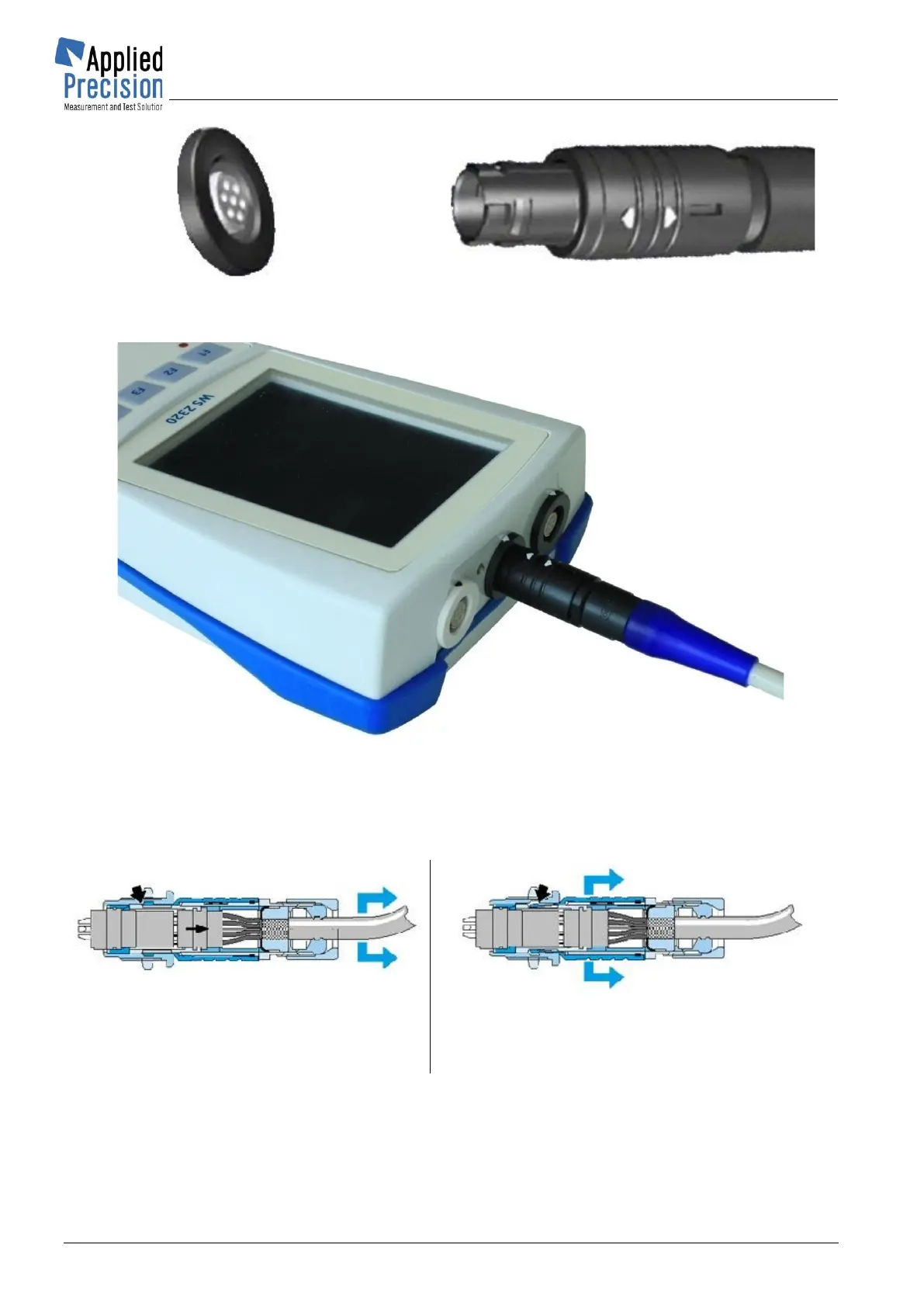

Figure 10 – Receptacle (socket)
Figure 11 – Plug on the cable of the accessory
Figure 12 – Inserted plug
3.6.1 Locking Mechanism
Figure 13 – Pulling on the cable or on the
back nut causes the locking fingers to grip
tighter into the groove inside receptacle
(socket). A separation is virtually impossible.
Figure 14 – Pulling on the outer plug housing
disengages the locking fingers from the receptacle
groove and the connector separates easily
