Applied Precision WS 2120 User Manual

Working Standard
User’s Guide
www.appliedp.com WS-UGFW619-EN
9
3. Device Hardware Overview
3.1 Front Side

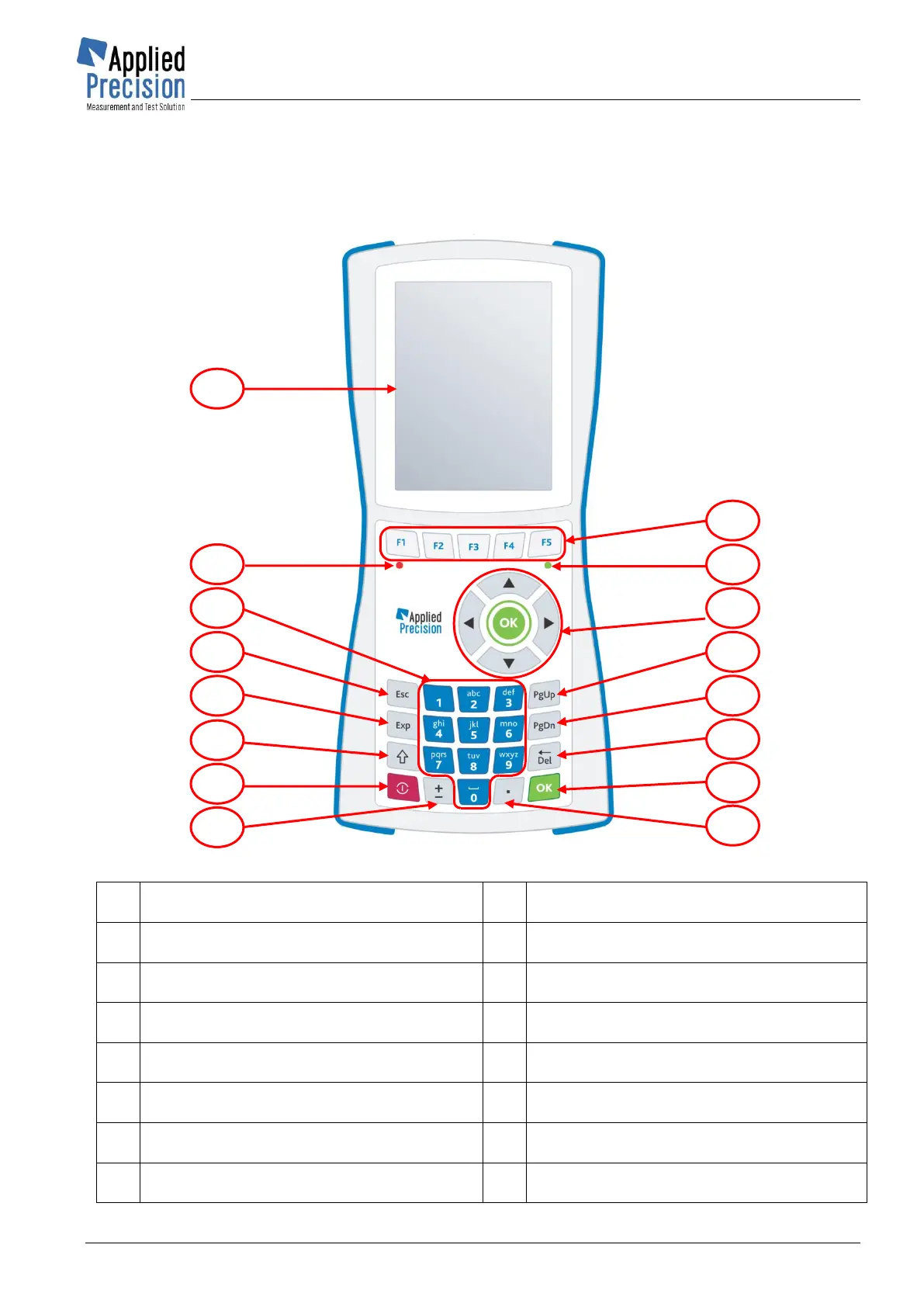

Figure 3 – Front side of the device
1
Display
- color graphical display
9
Function keys
- quick access to functions
2
Impulse LED
- red LED of impulse output
10
Indicator of charging of batteries
- green LED indicating charging status
3
Alphanumeric keypad
- keys 0-9 (a-z)
11
Choice keys
- arrows and OK
4
ESC key
- termination of functions
12
PgUp key
- paging upwards
5
Exp key
- input of exponent of number
13
PgDn key
- paging downwards
6
Shift key
- switching of keys functionality
14
Del key
- deleting
7
Power key
- power/LCD backlight turning on/off
15
OK key
- confirmation of choice
8
Sign key
- input of plus/minus sign
16
Point key
- decimal point
1
9
14
2
10
4
5
7
6
8
11
12
13
15
16
3

Applied Precision WS 2120 Specifications

General

Brand	Applied Precision
Model	WS 2120
Category	Measuring Instruments
Language	English
