6.1 Connection Diagrams

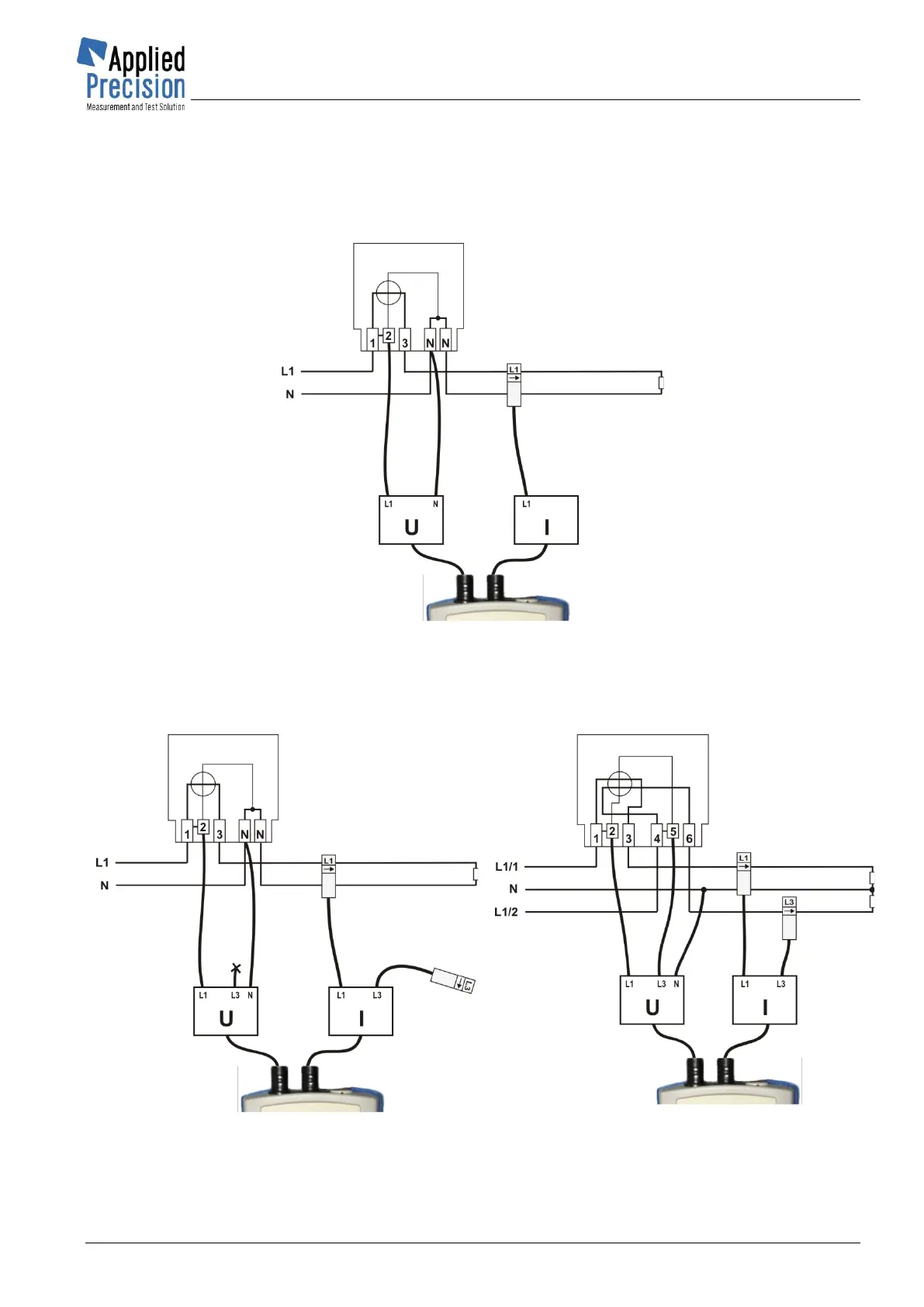

6.1.1 SINGLE PHASE measuring accessories
Single-phase 2-wire (1P2W) connection
6.1.2 TWO PHASE measuring accessories
Single-phase 2-wire (1P2W) connection
Single-phase 3-wire (1P3W) or
two-phase 3-wire (2P3W) connection
