3.3.2 External Data Memory Mapping

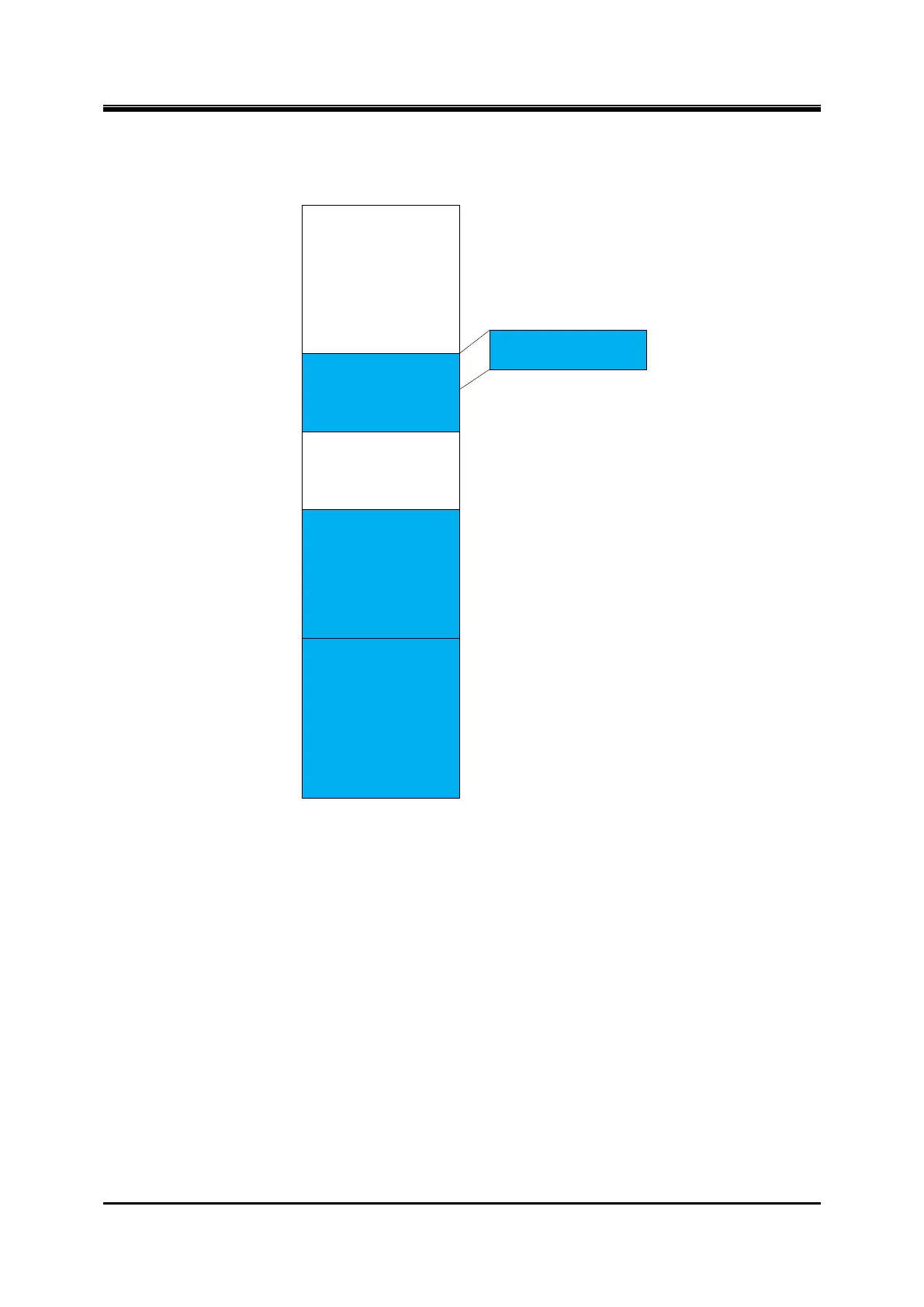

XFigure 3-2 illustrated External Data Memory Mapping.
XDATA Space
0x0000
SRAM2
0x63FF
0x7FFF
0xFFFF
0x8000
0x9FFF
0xA000
SRAM1
Reserved
0x6400
256B Data RAM
SRAM0
Reserved
0x1FFF
0x1F00
Figure 3-2 External Data Memory Mapping
3.3.3 Internal Data Memory Mapping
Internal data memory locates in SRAM0 at the address from 0x9F00 to 0x9FFF as showed in XFigure 3-2 Internal
data memory is mapped in XFigure 3-3. The memory space is shown divided into three blocks, which are generally
referred to as the Lower 128, the Upper 128, and SFR space.
