Install the Cross Tubes
Tools ½ - inch Open-End Wrench Cross Tube Box Contents:
Required: ½ - inch Socket Wrench

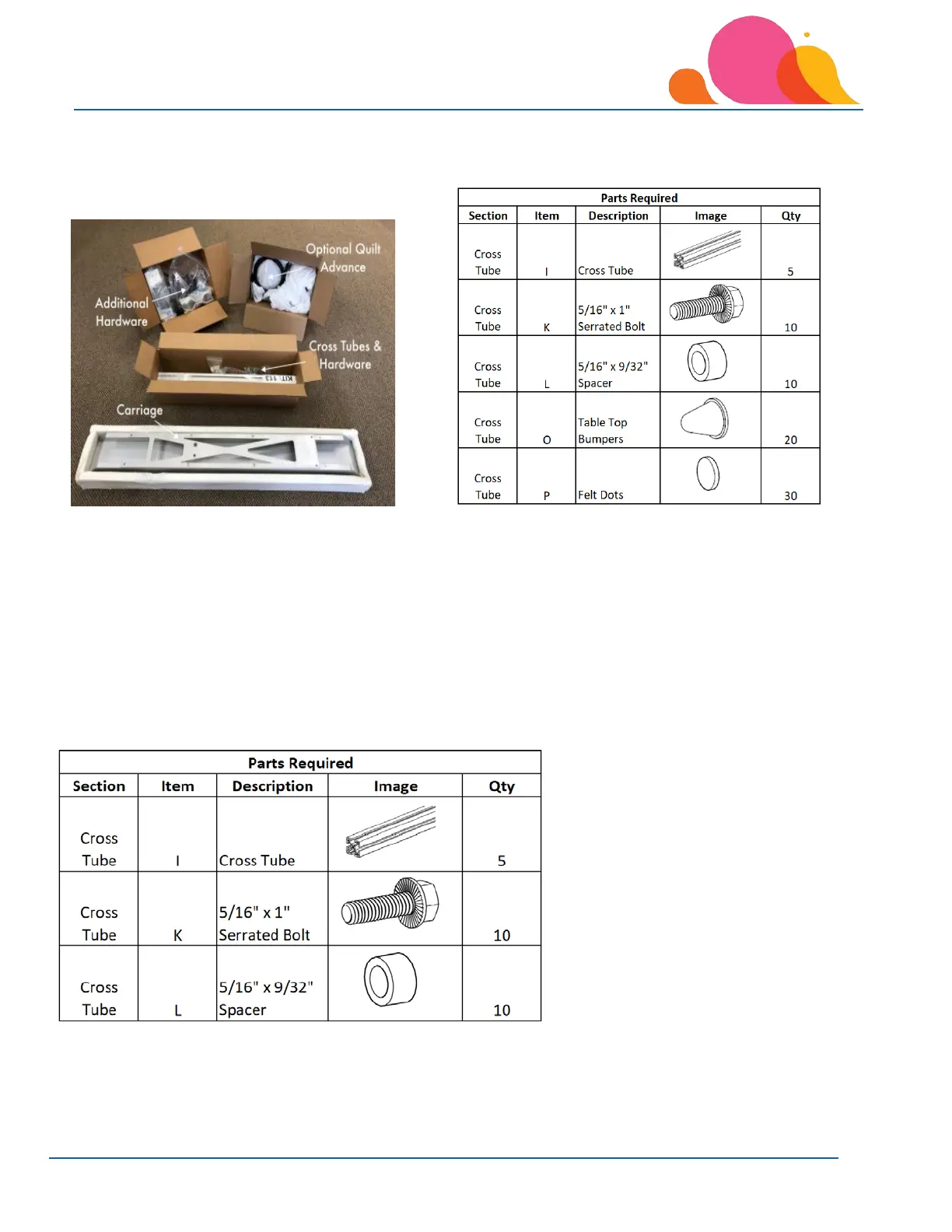

Open the Carriage Box 4 and unpack the Cross Tube Box and Hardware. You will need the cross tubes, serrated bolts and
spacers for this step. You will only need 10 bolts and spacers – we have included an extra bolt and spacer. Set the felt
dots and bumpers aside for now.
NOTE: Ignore the labels on the cross tubes; our vendor uses that information to package the tubes for APQS.
The 5 cross tubes keep the rails parallel and support the pantograph table top. Install the cross tubes to the rear table rail
as shown in the next steps.
