The top cover is connected to the machine with one cable. The cover can just hang off the side of the
machine by this cable, or if you feel more comfortable, you can disconnect this cable from the circuit board.
Push the plastic tab towards the cable, and then pull the cable out of the connector.
Using a flat blade screwdriver, turn the inside cap ¼ turn to the left while pushing in slightly– this will allow
the fuse holder to come out of the machine.
Pull the fuse holder out of the circuit board. It is a 3.15 amp 250 volt SLOW BLOW 5mm x 20mm fuse (not the
fast- acting type) (or 4 amp if the 3.15 is not available), and can be purchased at The Source (Used to be
Radio Shack) in Canada, or at Radio Shack in the United States. Some well-stocked auto stores or hardware
stores may also carry the fuse, or you can order it directly from APQS.

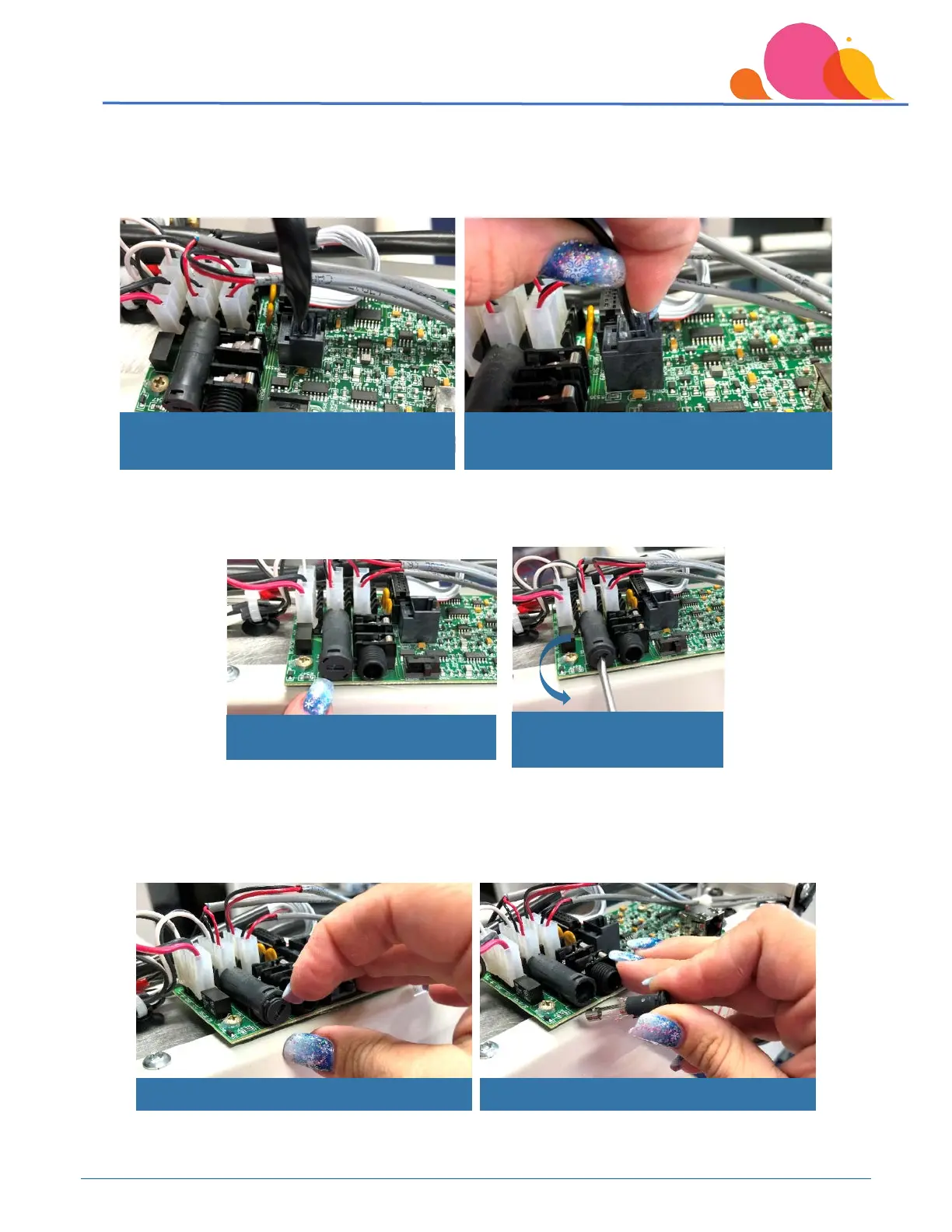

Grab edge of fuse holder to remove
Fuse holder removed from circuit board
Fuse holder for circuit boards
Turn fuse holder ¼ turn to
the left to remove
Wire connection for thread break sensor in
center of circuit board
Disconnect cable by pushing plastic tab towards
cable and pulling upwards
