FLO AT
Switch
DH DH
NORMALLY CLOSED
FLOAT SWITCH
90-1857

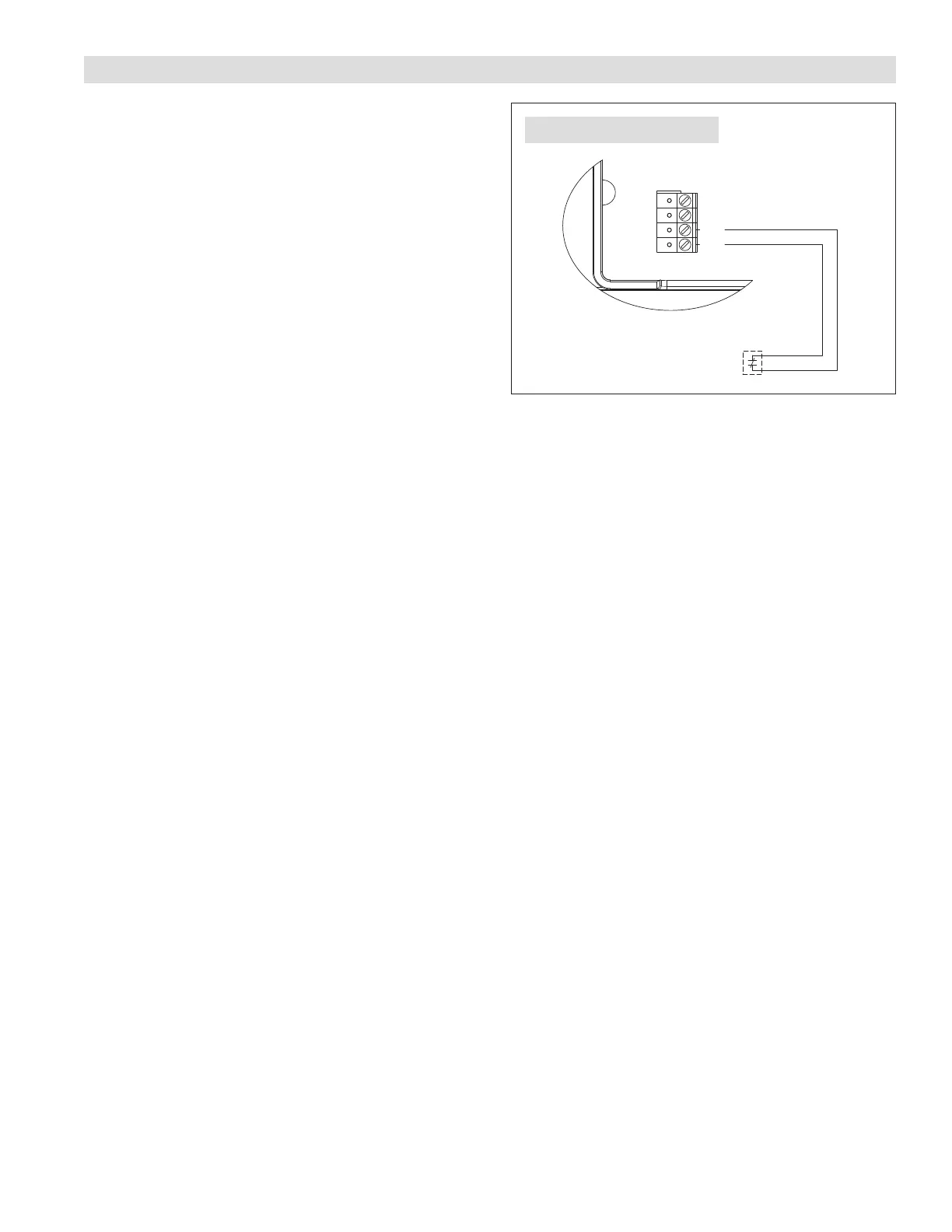

FIGURE 4 – FLOAT SWITCH WIRING
CONDENSATE PUMP AND FLOAT SWITCH
If a condensate pump is needed, install it in the condensate pan if
installed�
Install a condensate overflow safety switch (i�e� float switch) in the
condensate pan, remove the factory installed jumper wire between
the Float Switch terminals on the control and wire the float switch to
the dehumidifier as shown in FIGURE 4� Overflow safety switches on
condensate pumps can be wired to the Float Switch terminals in a
similar fashion�
English 5
