Aprimatic Harrier E25 - Barrier Body External Dimensions; Installation; Preliminary Controls and Precautions

- 18 -
English
External dimensions / Preliminary operations

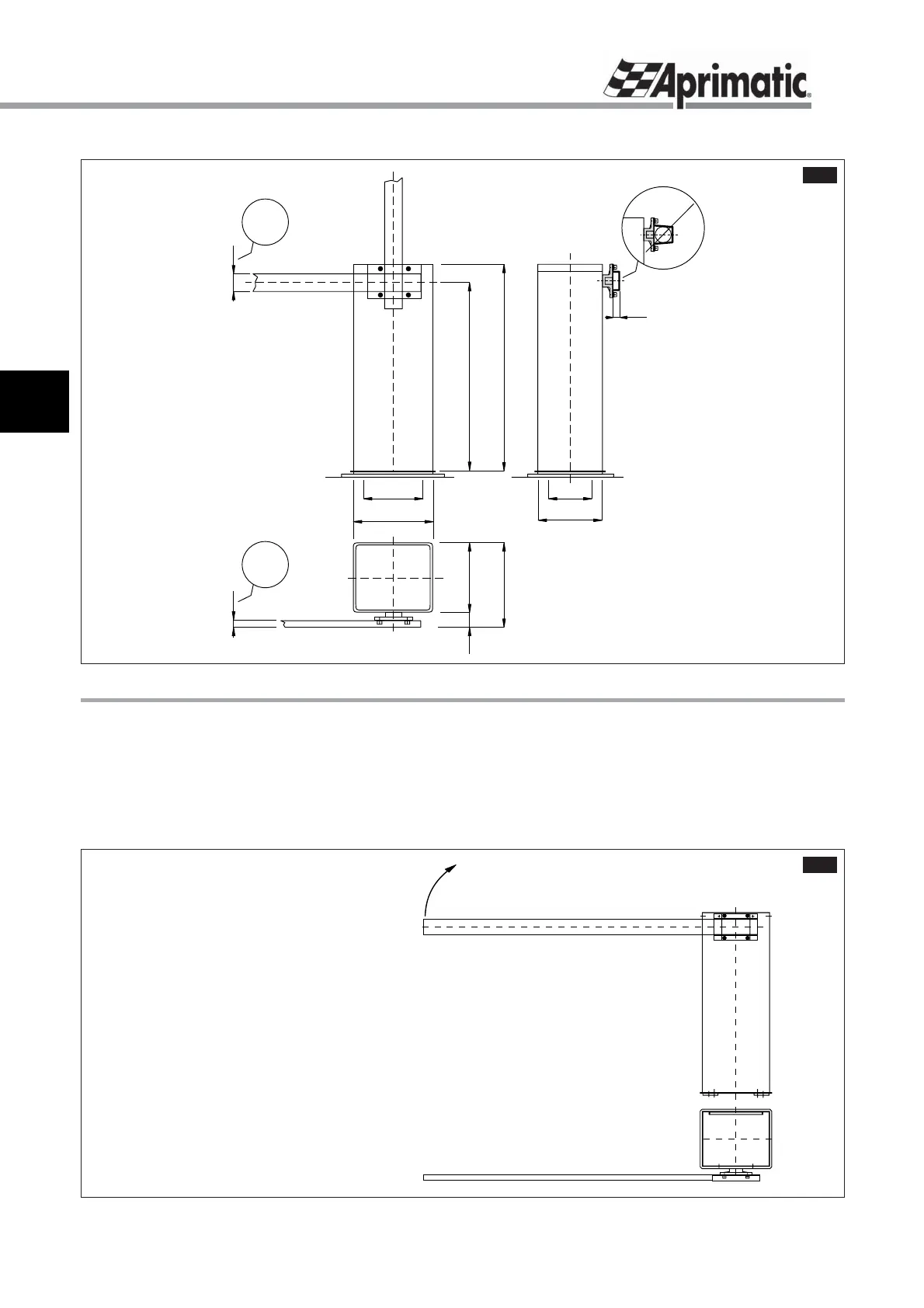

4.4 BARRIER BODY EXTERNAL DIMENSIONS
90
∅ 80
25
200230
410 (E series)
355 (X series)
969
893
375 (E series) 380 (X series)
65
25
∅ 80
∅ 80
310 (E series)
315 (X series)
310 (E series) 315 (X series)
fig.2
fig.3
5. INSTALLATION
5.1 PRELIMINARY CONTROLS AND PRECAUTIONS
Before proceeding with the installation please check the following:
- The installation area must be large enough to fully accommodate the barrier in the open and closed positions (see Fig. 2).
- The installation area must be solid and fl at, particularly in the areas where the components are mounted on the
ground.
- Evaluate whether it is necessary to install an end support fork (optional) - advisable in the case of very long barriers.
WARNING: The barrier is supplied in
the right hand confi guration, i.e. when it
is viewed from the barrier side, it opens
clockwise (see fi g .3).
To change it to the left hand confi guration,
refer to para. “Changing the barrier
confi guration”.
