APT 320XAC - Page 38

32
5b. L: Line input screw terminal.
5c. G: Earth ground (chassis) connection.
6. Output Terminal Power Block: provides output power to the DUT.
6a. L: Line output screw terminal.
6b. G: Earth ground (chassis) connection.
6c. N: Neutral output screw terminal.
6d. Ls: Line voltage sense screw terminal.
6e. Ns: Neutral sense screw terminal.

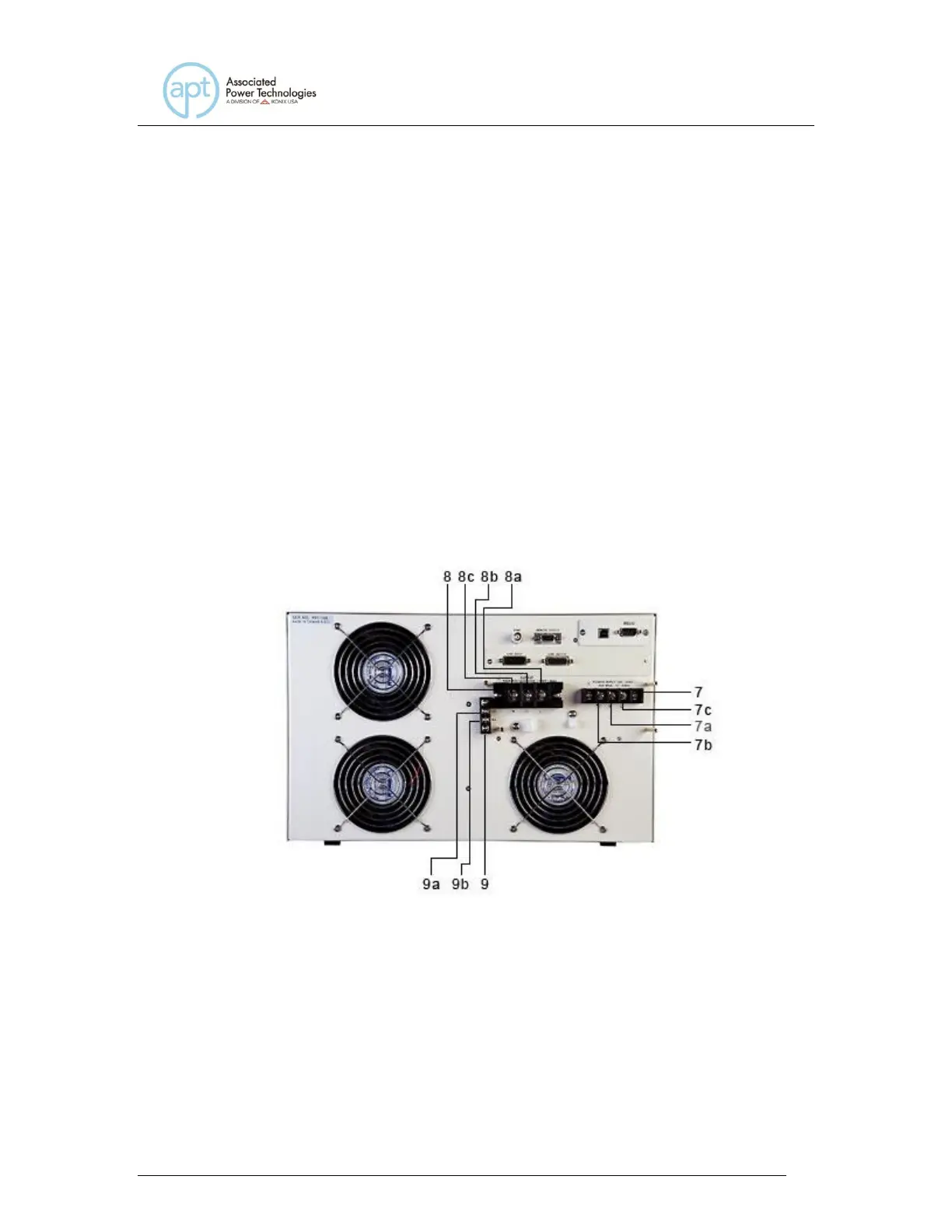

7. Input Terminal Power Block: provides input power to the instrument.
Model 340XAC requires 180-284 VAC 1Ø, 47-63 Hz.
7a. N: Neutral input screw terminal.
7b. G: Earth ground (chassis) connection.
7c. L: Line input screw terminal.
