8. Output Terminal Power Block: provides output power to the DUT.
8a. L: Line output screw terminal.
8b. G: Earth ground (chassis) connection.
8c. N: Neutral output screw terminal.
9. External Sense Output Terminal Block: provides screw terminals for
external voltage sense leads.
9a. L: Line voltage sense screw terminal.
9b. N: Neutral voltage sense screw terminal.

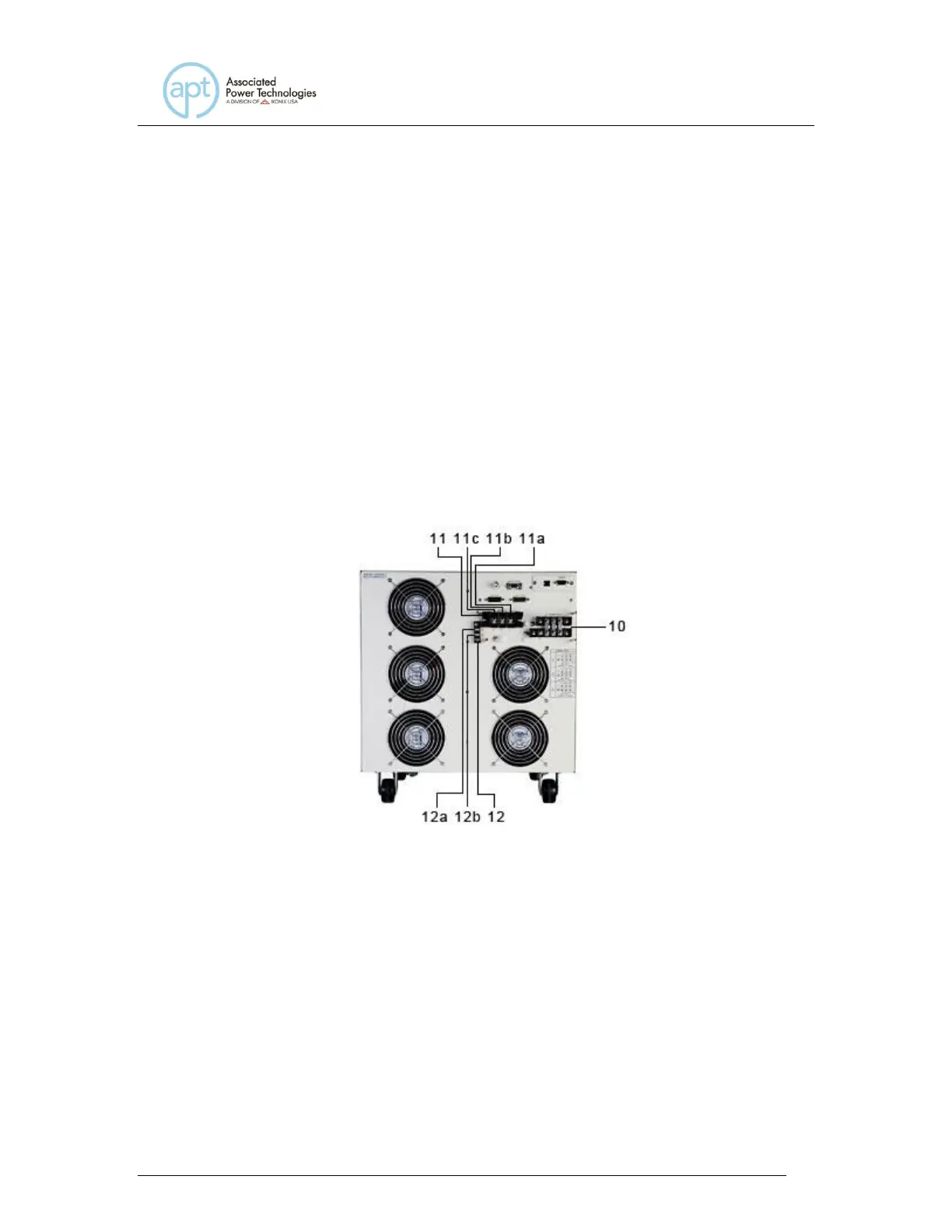

10. Input Terminal Power Block: provides input power to the instrument.
Model 360XAC requires 180-264 VAC 1Ø, 180-264 VAC 3Ø or 312-457
VAC 3Ø at 47-63 Hz.
11. Output Terminal Power Block: provides output power to the DUT.
11a. L: Line output screw terminal.
11b. G: Earth ground (chassis) connection.
11c. N: Neutral output screw terminal.
