* The Lightning Clamp can attach to round or square fittings with a diameter of 2-5cm /
0.79-1.97 in.

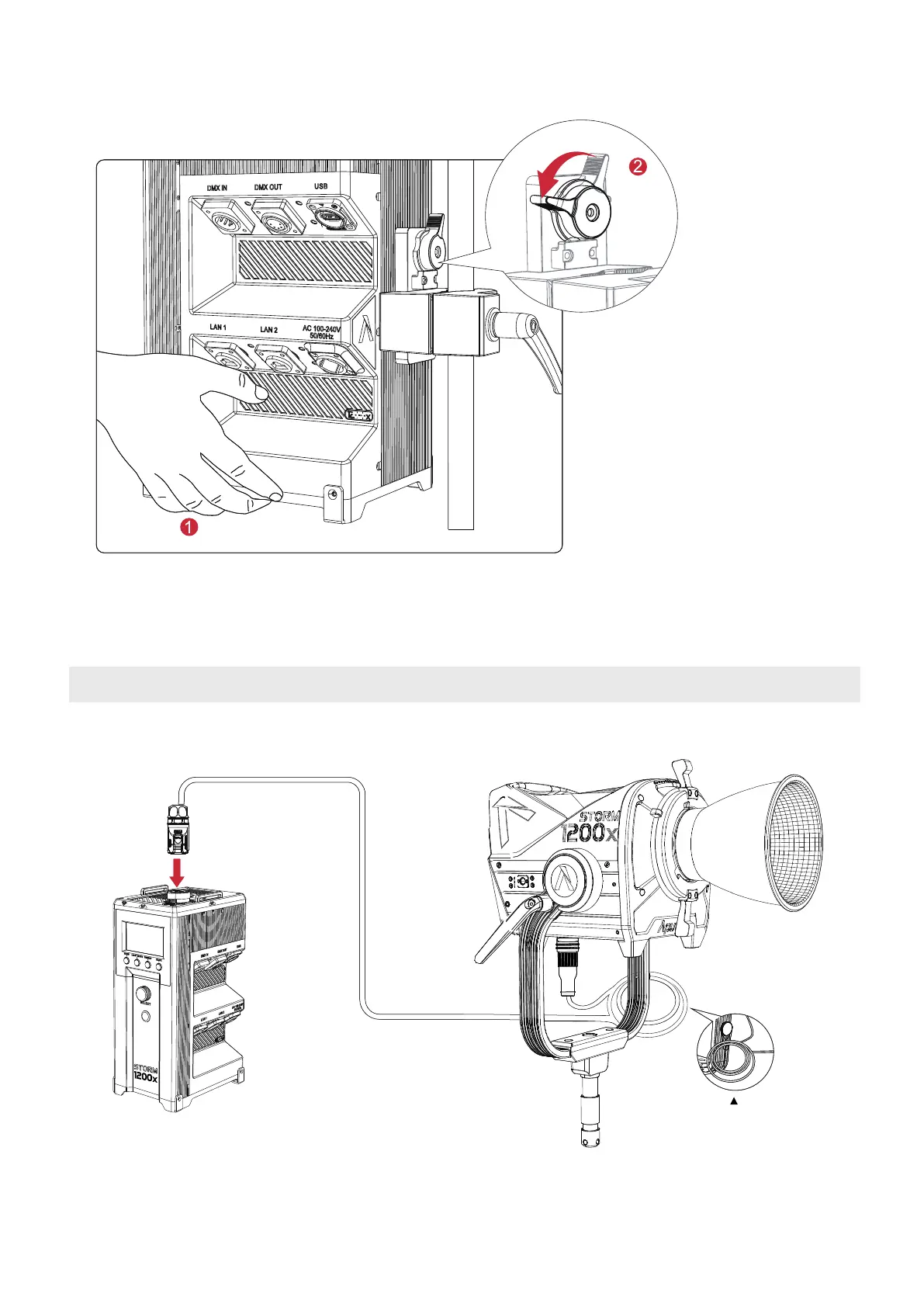

5. Connecting the Lamp Head to the Control Box
Connect the Lamp Head to the Control Box using the 8-pin Weatherproof Head Cable.
09
* Hang the cable using the strain relief to
manage and reduce tension on the cable.
3) To remove the Control Box, grasp it firmly, and unlock the quick-release plate by
turning its lever.
