HC151+ MULTI / HC200+ MULTI
ENGLISH
2. OPERATION
The HC151 + / HC200 + MULTI are digital electromagnetic dosing pumps that can operate at constant flow
rate or proportional flow rate according to an external signal from a pulse emitting water meter or from a mA
signal or operate via a Daily / Weekly timer. The pump has a BNC connector for the connection of a level
sensor and a 4-pole connector for the connection to a signal in current (mA) or from a pulse emitting water
meter.

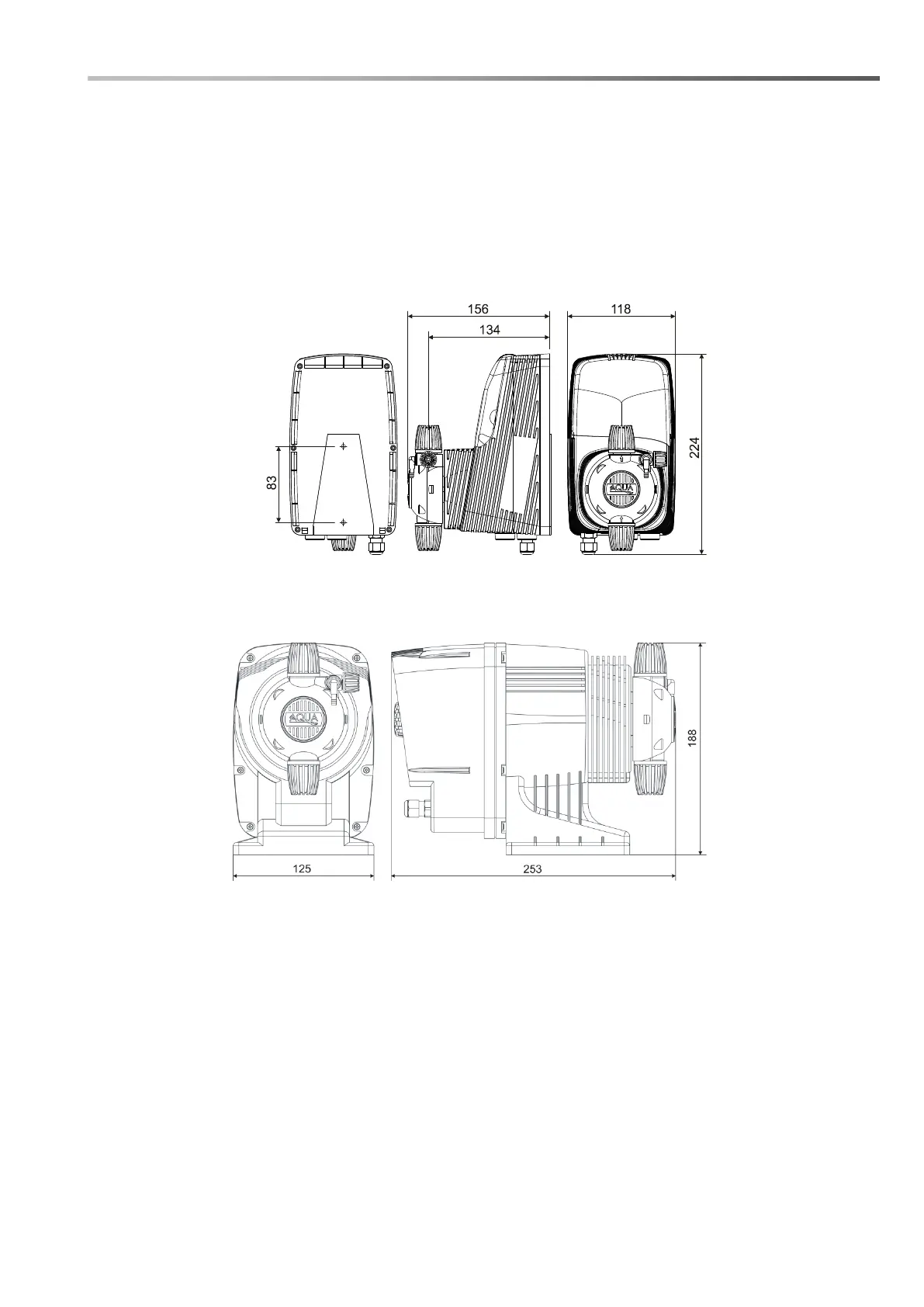

2.1 OVERALL DIMENSIONS
HC151+
HC200+
2.2 TECHNICAL FEATURES
Power supply: 100÷240VAC ± 10% – 50/60Hz
Insulation Class: CLASS I
Absorbed power: see “2.3 - Hydraulic Features”
Fusible: 2 A – RIT
Protection Grade: IP65
Environmental conditions: Closed environment, altitude up to 2000m, room temperature from
5°C up to 40°C, maximum relative humidity 80% (linearly decreases
until it is reduced to 50% at 40°C).
