HC151+ MULTI / HC200+ MULTI
ENGLISH
3. HC151
+
MULTI / HC200
+
MULTI
3.1 HC151
+
/HC200
+
MULTI PUMP CONTROLS

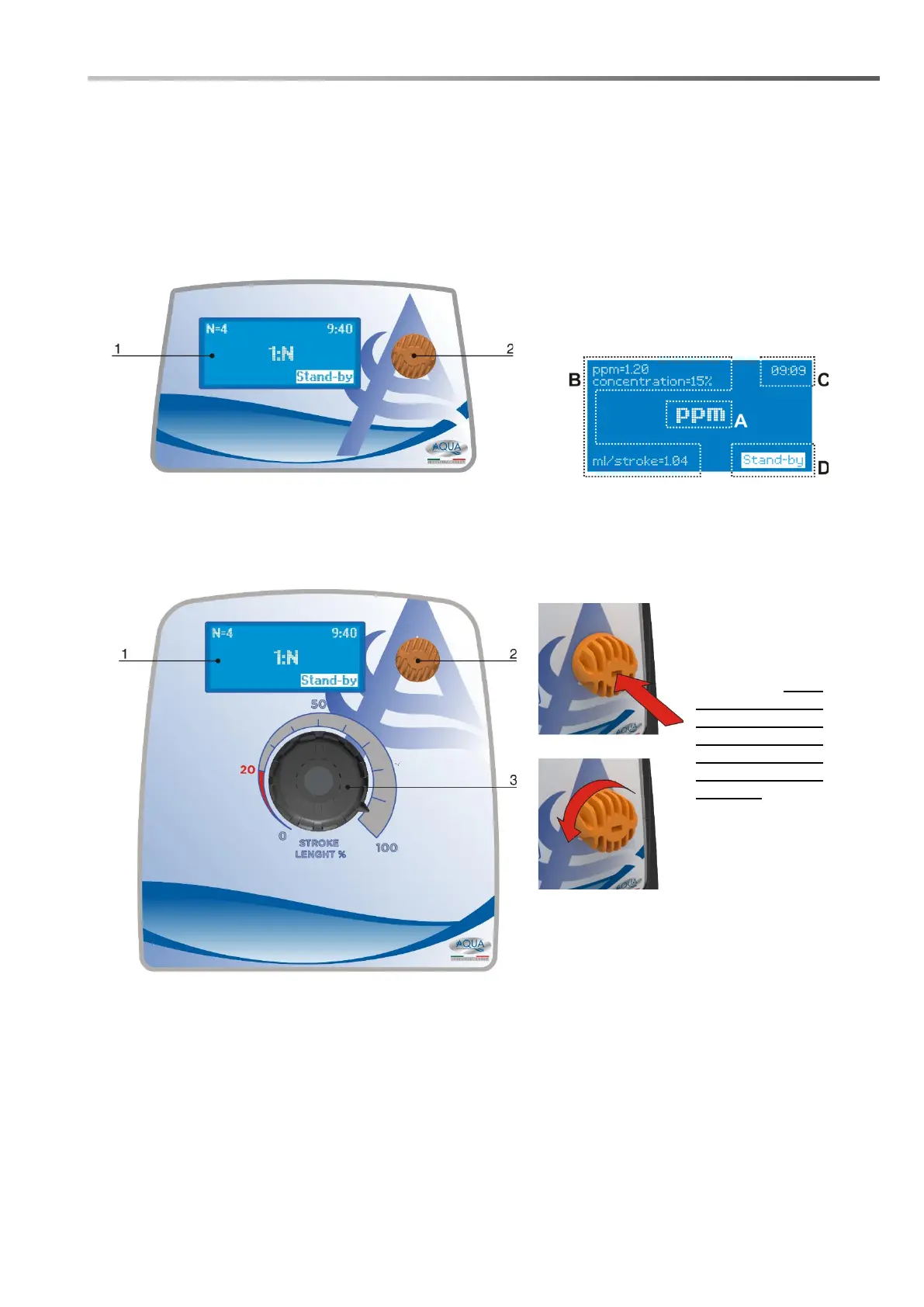

The control panel of the HC151+ MULTI and HC200+ MULTI dosing pumps consists of a graphic display
(1) and an encoder knob (2) which allow you to navigate through the various menus and select / modify
the pump configuration parameters, the figures below show what the control panel looks like:
HC151+
A. Active function;
B. Configured parameters;
C. Time;
D. Warnings messages
HC200+
1. 132x56 pixel graphic display;
2. Encoder;
3. Mechanical stroke lenght adjustment
(only for HC200+)
Press to: confirm
a value or access
a submenu. If it is
kept pressed for 2
seconds, it returns
to the previous
menu or activates
/ deactivates the
Stand-by.
Turn to: navigate
the menus or
change a numeric
value.
